Rain Bird R-VAN 360 Degree Full Circle Rotary Nozzle 17 - 24 ft | R-VAN24-360

In stock
SKU
R-VAN24-360
Free Shipping on Orders over $149
Sales Price $3.95 Our Price $9.55 You save 59%
Case of 10
$3.87 / each
Case of 50
$3.79 / each

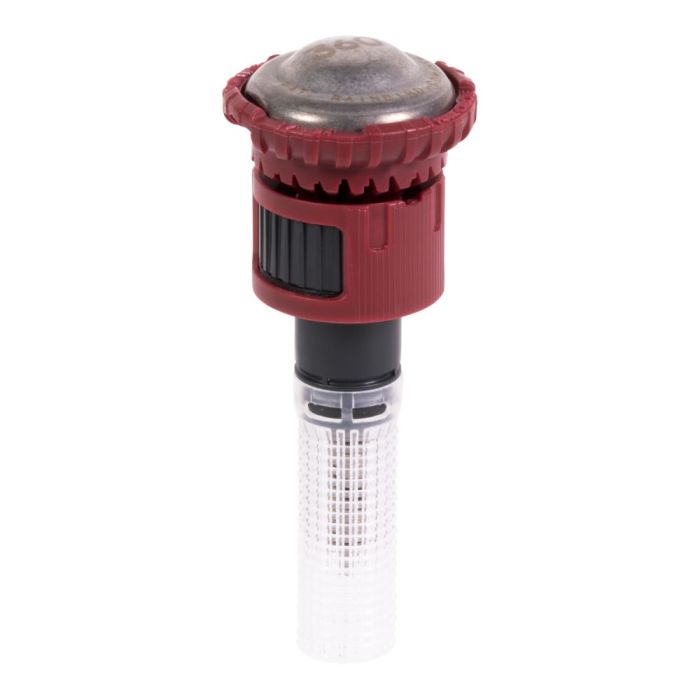

Rain Bird R-VAN24-360 17'-24' Full Circle Rotary Nozzle (360 Degree)

Rotary Nozzles provide unsurpassed design flexibility and highly efficient water distribution from 17 to 24 feet. Rain Bird Rotary Nozzles help reduce water waste and make it easier to design systems.

The Rotary Nozzle is a truly remarkable innovation with a low precipitation rate, highly uniform distribution, and increased radius range, all in a nozzle which fits on a Rain Bird spray head.

Features / Benefits

  • Fewer zones, faster installs - System complexity and cost are reduced because more heads can be installed per zone. Rotary Nozzles can also be zoned with Rain Bird 5000/5000 Plus MPR Rotor Nozzles.
  • Efficient water distribution - multiple rotating streams deliver close-in watering and even coverage throughout the radius range. The low precipitation rate significantly reduces wasteful run-off and erosion
  • Ultimate retrofit solution - low flow rate and an expanded radius of throw solve existing spray zone inefficiencies caused by diminished pressure or stretched spacing.
  • Low precipitation rate - 0.60 in/hr (15,2 mm/hr) - reduces run-off and erosion.
  • Multiple, rotating streams uniformly distribute water throughout the radius range.
  • Matched precipitation rate across radii and pattern simplify the design process.
  • With approximately 60% less flow than conventional spray nozzles, Rotary Nozzles allow more heads per zone, reducing overall system complexity and cost.

Operating Range

  • Pressure range: 20 - 55 psi
  • Spacing: 17' to 24' (based on zero wind conditions)
  • The Rotary Nozzle shall have multiple arced streams and have a matched precipitation rate of 0.60 in/hr.
  • The Rotary Nozzle shall be constructed of UV-resistant plastic. The radius adjustment screw shall be of stainless steel.

Manuals and Literature

Specifications Charts Brochure
More Information
Brand Rain Bird
Type Rotary Nozzle
Max PSI 55 PSI
Operating PSI 30 - 55 PSI
Warranty 3 Years
Spray Pattern Full Circle
Connection Female
Spray Radius 17 - 24 ft (R-VAN24)
