Rain Bird R-VAN 45 - 270 Degree Adjustable Rotary Nozzle 13 - 18 ft | R-VAN18

In stock
SKU
R-VAN18
Free Shipping on Orders over $149
Sales Price $3.95 Our Price $9.55 You save 59%
Case of 10
$3.87 / each
Case of 50
$3.79 / each

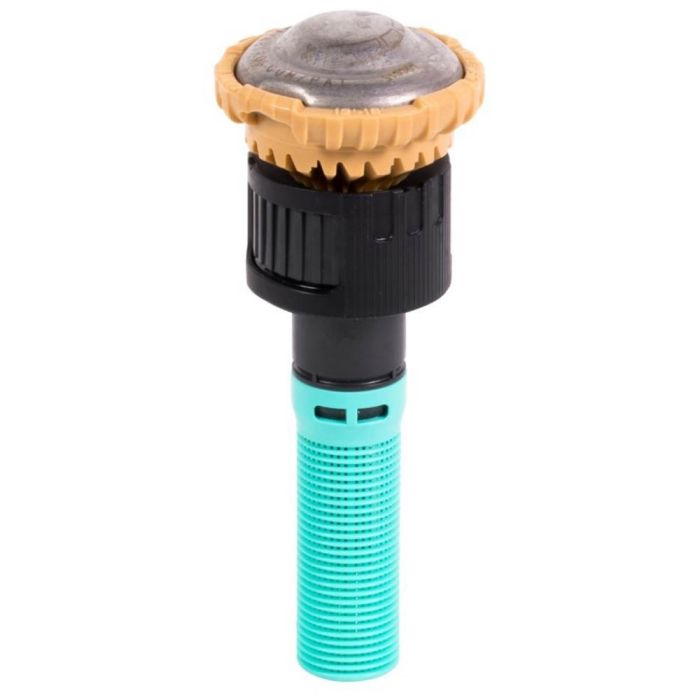

Rain Bird R-VAN18 13-18 ft. Adjustable Rotary Nozzle (45 to 270 Degrees)

  • Delivers water at a low precipitation rate
  • Can reduce flow by up to 60% and improve water efficiency by up to 30%
  • Easily adjusted by hand with no tools required

Features & Benefits

Rain Bird R-VAN Adjustable Rotary Nozzles provide water efficiency and design flexibility. R-VAN Adjustable Rotary Nozzles feature rotating stream technology which uniformly delivers water at a low precipitation rate, significantly reducing runoff and erosion.Retrofitting standard spray nozzles with R-VAN Adjustable Rotary Nozzles can reduce flow by up to 60% and improve water efficiency by up to 30%. Nozzle spray pattern and distance are easily adjusted by hand with no tools required.

Thick wind-resistant streams ensure efficient performance in adverse real world conditions. R-VAN's large water droplets cut through the wind so water stays in the target zone without misting or fogging. An exclusive manual flush feature keeps nozzles clear of dirt and debris even in extreme conditions.

  • Adjust arc and radius without tools.
  • Color coded for easy identification of R-VAN model
  • Low precipitation rate reduces run-off and erosion
  • Maintains efficient performance at high operating pressures without misting or fogging
  • Compatible with all models of Rain Bird spray bodies in addition to a wide variety of risers and adapters
  • Matched precipitation rates across radius and arcs simplify the design process
  • Coverage up to 24' but when paired with Rain Bird 5000 Series Rotor matched precipitation rate (MPR) nozzles, irrigation designs from 13 to 35 ft. (4.0 m to 10.7 m) can be easily handled

Operating Range

  • Pressure Range: 30 to 55 psi (2.1 to 3.8 bar)
  • Recommended Operating Pressure: 45 psi (3.1 bar)
  • Spacing: 13' to 24' (4.0 to 7.3 m)
  • Adjustments: Arc and radius should be adjusted while water is running
R-VAN18 13’ - 18’ (4.0 to 5.5m)
ARC PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
270°
30 16 1.26 0.65 0.75
35 16 1.35 0.64 0.74
40 17 1.42 0.63 0.73
45 17 1.51 0.64 0.73
50 18 1.57 0.60 0.69
55 18 1.62 0.60 0.69
ARC PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
210°

30 16 0.98 0.63 0.73
35 16 1.05 0.68 0.78
40 17 1.10 0.63 0.73
45 17 1.17 0.64 0.77
50 18 1.22 0.62 0.72
55 18 1.26 0.64 0.74
ARC PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
180°

30 16 0.85 0.65 0.75
35 16 0.91 0.64 0.74
40 17 0.98 0.63 0.73
45 17 1.01 0.64 0.73
50 18 1.07 0.60 0.69
55 18 1.07 0.60 0.69
ARC PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
90°

30 16 0.42 0.65 0.75
35 16 0.47 0.64 0.74
40 17 0..50 0.63 0.73
45 17 0.50 0.64 0.73
50 18 0.54 0.60 0.69
55 18 0.54 0.60 0.69



Related Articles & Videos

Articles

Videos

Brand:
Rain Bird
Type:
Rotary Nozzle
Max PSI:
55 PSI
Operating PSI:
30 - 55 PSI
Warranty:
3 Years
Spray Pattern:
Adjustable Arc
Connection:
Female
Spray Radius:
13 - 18 ft (R-VAN18)
Brochure (2.19 MB)
