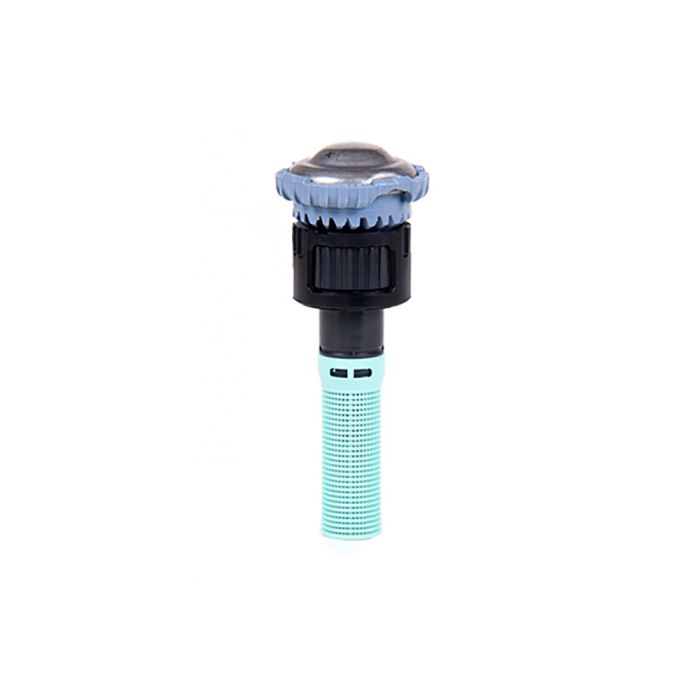

Rain Bird R-VAN 45 - 270 Degree Adjustable Rotary Spray Nozzle (8 - 14 ft.) | R-VAN14

• Delivers water at a low precipitation rate, significantly reducing runoff and erosion
• Can reduce flow by up to 60% and improve water efficiency by up to 30%
• Easily adjusted by hand with no tools required

Features & Benefits

Rain Bird R-VAN Adjustable Rotary Nozzles provide water efficiency and design flexibility. R-VANs feature rotating stream technology which uniformly delivers water at a low precipitation rate, significantly reducing runoff and erosion. Retrofitting standard spray nozzles with R-VANs can reduce flow by up to 60% and improve water efficiency by up to 30%. Nozzle spray pattern and distance are easily adjusted by hand with no tools required.

• 8-14 ft adjustable pattern rotary nozzle
• Matched precipitation rates across radius and arcs simplify the design process
• Adjust arc and radius without tools
• A pull-up to flush feature keeps the nozzle clear of dirt and debris
• Color coded for easy identification of R-VANmodel
• Low precipitation rate reduces runoff and erosion
• Maintains efficient performance at high operating pressures without misting or fogging
• Compatible with all models of Rain Bird spray bodies in addition to a wide variety of risers and adapters
• Installing with Rain Bird 5000 MPR Series Rotors allows for matched precipitation in installations from 8 ft. to 35 ft. (2.4 m to 10.7 m)
• Three year trade warranty

Product Details

• The R-VAN nozzle shall have a variable arc that is adjustable without a tool at specified operating pounds per square inch (bar).
• The R-VAN nozzle shall have a radius that is adjustable without a tool at specified operating pounds per square inch (bar).
• The R-VAN nozzle shall have a variable arc of 45° to 270°.
• The R-VAN nozzle angle of the trajectory shall vary from 4° to 34°.
• The R-VAN nozzle shall be constructed of UV-resistant plastic. The protective metal cap shall be of stainless steel.
• The R-VAN nozzle shall include a removable 0.012 in. x 0.012 in. mesh screen to protect the nozzle against clogging.
• The R-VAN nozzle shall have a precipitation rate matched with Rain Bird 5000 Series MPR Rotor Nozzles.
• The R-VAN nozzle shall have a 3 year trade warranty

R-VAN14 8’ - 14’ (2.4 to 4.6m)

ARC	PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
270°
	30	13	0.84	0.64	0.76
	35	13	0.87	0.66	0.74
	40	14	0.92	0.6	0.71
	45	14	0.94	0.62	0.7
	50	15	1.11	0.63	0.73
	55	15	1.17	0.67	0.77

ARC	PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
210°
	30	13	0.65	0.64	0.76
	35	13	0.68	0.66	0.74
	40	14	0.72	0.6	0.71
	45	14	0.73	0.62	0.7
	50	15	0.86	0.63	0.73
	55	15	0.91	0.67	0.77

ARC	PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
180°
	30	13	0.56	0.64	0.76
	35	13	0.58	0.66	0.74
	40	14	0.61	0.6	0.71
	45	14	0.63	0.62	0.7
	50	15	0.74	0.63	0.73
	55	15	0.78	0.67	0.77

ARC	PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
90°
	30	13	0.28	0.64	0.76
	35	13	0.29	0.66	0.74
	40	14	0.31	0.62	0.71
	45	14	0.32	0.61	0.7
	50	15	0.37	0.63	0.73
	55	15	0.39	0.67	0.77
