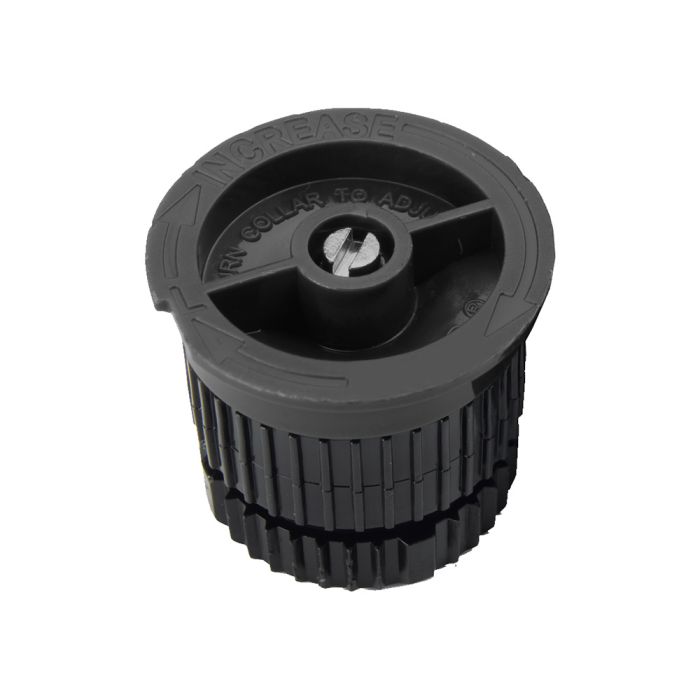

Rain Bird VAN Adjustable Nozzle 15 ft | 15VAN

• Can be adjusted to the exact pattern of your lawn
• Ideal for odd shaped corners and smaller grassy areas
• They can also be used for watering flowerbeds or shrubs

Features & Benefits

Rain Bird VAN Nozzles ensure the diverse needs of your landscape, including oddly shaped corners, will be evenly watered, leaving you with a beautiful lawn and garden. They can be adjusted to the exact pattern of your lawn, ensuring your landscape will be precisely watered, so you don't need to worry about it. They are ideal for odd shaped corners and smaller grassy areas around sidewalks and driveways; they can also be used for watering flowerbeds or shrubs.

• Easy arc adjustment from 0° to 360° for 15- and 18 VAN
• Simple twist of center collar increases or decreases arc setting
• Stainless steel adjustment screw to adjust flow and radius.
• Shipped with blue filter screen (.02 x .02) to maintain precise radius adjustment and prevent clogging.
• 12-, 15-, and 18 VAN have matched precipitation rates with Rain Bird MPR Nozzles.

Product Details

• 15-VAN: 12 to 15 feet (3,7 to 4,6 m)
• Pressure: 15 to 30 psi (1 to 2,1 bar)
• Optimum pressure: 30 psi (2,1 bar)

15VAN 15 ft Adjustable Nozzle

ARC	PRESSURE PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
	15	11	2.60	2.07	2.39
	20	12	3.00	2.01	2.32
	25	14	3.30	1.62	1.87
	30	15	3.70	1.58	1.83

ARC	PRESSURE PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
	15	11	1.95	2.07	2.39
	20	12	2.25	2.01	2.32
	25	14	2.48	1.62	1.87
	30	15	2.78	1.58	1.83

ARC	PRESSURE PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
	15	11	1.30	2.07	2.39
	20	12	1.50	2.01	2.32
	25	14	1.65	1.62	1.87
	30	15	1.85	1.58	1.83

ARC	PRESSURE PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
	15	11	0.65	2.07	2.39
	20	12	0.75	2.01	2.32
	25	14	0.82	1.62	1.87
	30	15	0.92	1.58	1.83
