Tempo Wire and Valve Locator | MODEL-521A-LOCATOR

Overview

• Type: Wire and Valve Locator
• Voltage: 750 Vpp, 285 V RMS
• Passive Trace Frequency: 1748
• Batteries NOT included

Features & Benefits

Tempo's 521A Wire and Valve Locator is a universal troubleshooting and maintenance tool for electrically controlled sprinkler irrigation systems. It is capable of locating the wire path, depth, wire breaks, large nicks, and solenoid valves.

• High power transmitter offers extended long-range and allows use on higher resistance wire paths
• Adjustable transmit power allows you to select the best signal for maximum performance
• The receiver provides adjustable loudspeaker audio, headset audio, and visual indications of signal strength
• A Long-nose receiver wand makes it easy for you to move along quickly to locate even the longest wire path
• Valve solenoid hotspot signal makes pinpointing valves easy
• Rugged headphones block ambient noise

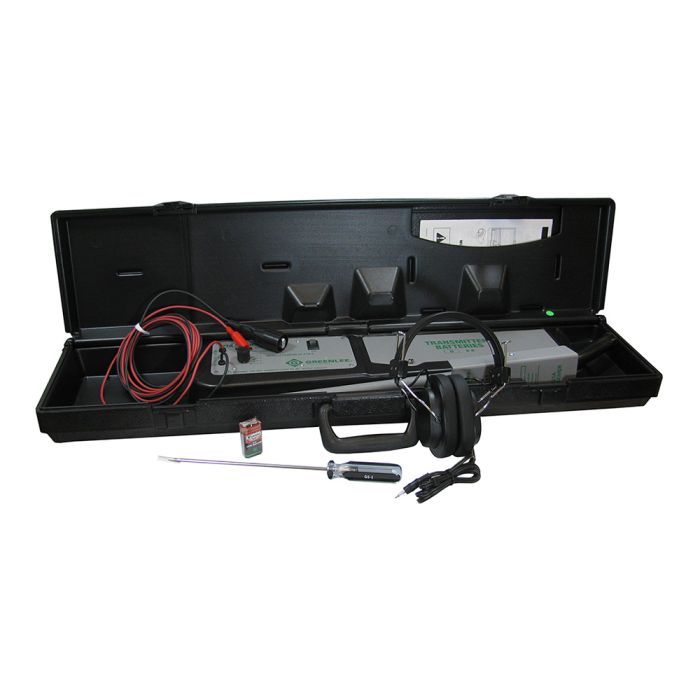

• Includes transmitter, receiver, headset, ground stake, and slim-line carry case
• Battery-operated (eight D cell batteries and one 9V)
• 1 YR warranty
• Automatic Shut-Off: 90 MINT For Receiver, Turn-Off Bumper For Transmitter
• Battery: Eight D-cells And One 9 VDC (NOT included)
• Battery Life : Transmitter: 50 HR Nominal, Receiver: 100 HR Nominal
• Dimensions : 33.5 (851 MM) Length X 8.25 (210 MM) Width X 3.75 (95 MM) Height Case
• Transmitter Frequency: 1748
• Transmitter Power: 750 Vpp, 285 V RMS
