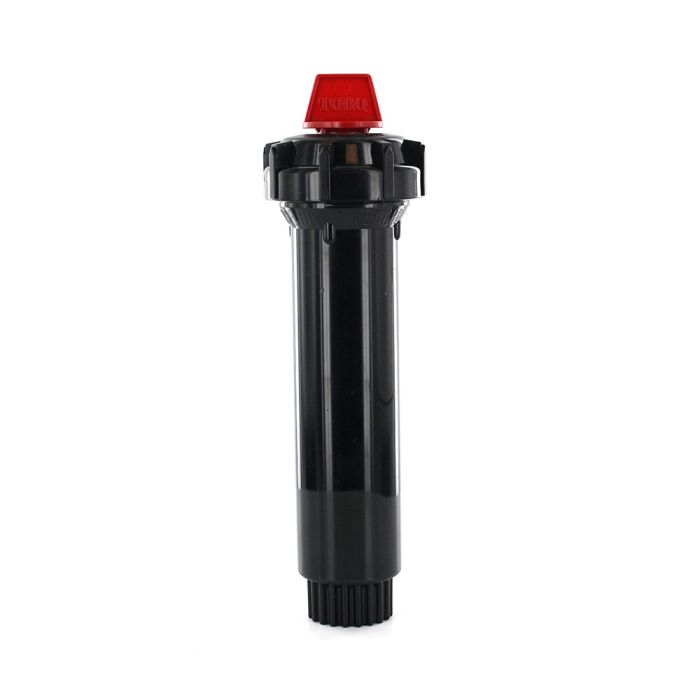

Toro 570Z Spray Head 4 in. | 570Z-4P

Overview

• Can be configured in hundreds of combinations and present an unparalleled range of flexibility
• Pressure Regulating water-saving features
• Trusted for over 25 years, Toro's 570Z Series spray heads are the ideal choice.

Features & Benefits

Toro® 570Z Series spray heads provide everything needed for residential and commercial contractors to satisfy all installation and retrofit requirements. In combination with Toro spray and rotating nozzles, 570Z Series spray heads can be configured in hundreds of combinations and present an unparalleled range of flexibility. Available in 2”, 3”, 4”, 6” and 12” models with both bottom and side inlet thread options, Toro 570Z Series spray heads are further available with patented in-stem X-Flow® Technology and Pressure Regulating water-saving features. Trusted for over 25 years, Toro's 570Z Series spray heads are the ideal choice.

Zero Flush Wiper Seal

The elimination of flushing on pop-up allows for more sprinklers to be installed per zone.

Ratcheting Riser

Quick and precise arc adjustment on all pop-up models.

Related Articles

• Recommended Irrigation Spray Heads
• How To Replace A Pop Up Irrigation Spray Head
• How To Add A Rotor Or Spray Head To A Zone

Operational

• Radius: 2 feet to 26 feet
• Operating pressure range: 20 - 75 psi (15-75 psi for Low Pressure models)
• Recommended operating pressure for spray nozzles: 30 psi
• Recommended operating pressure for rotating nozzles: 40-50 psi
• Flow rate: 0.5 4.5 gpm

Dimensions

• Body diameters:
• 1⅜” on 2”, 3”, 4”, 6” and 6” Side Inlet
• 1⅝” on 12”
• 1¾” on 12” Side Inlet
• Cap diameter: 2”
• Inlet thread: ½” Female
• Side inlet location: 4¾” (measured from the top of spray head to center of the side inlet port)

Additional Features

• Corrosion-resistant stainless steel retraction spring
• All models shipped with installed flush plug

Options Available

• Serviceable Check Valve (570CV) prevents low-head drainage on elevation changes of up to 10 feet (not compatible with Side Inlet models)
• Replacement Zero-Flush seal (570SEAL)
• Effluent water indicators:
• Effluent Shrub Adapter (102-1231)
• Effluent snap-on cap cover (89-9752)
• Effluent Cap with seal (102-1211)
• 6” Riser Extender (570-6X)
• 6” Stationary Riser (570-SR-6) [½” male-threaded inlet]
• 18” Stationary Riser (570-SR-18) [½” male-threaded inlet]
• Riser Pull-up Tool (89-6395)
• Nozzle Adjustment Key (89-7350)

4” Pop-Up Body (570Z)

• Inlet: ½” I.P.S. Thread
• Height: 4¾” (4”)
• Pop-Up: 4”
• Retraction: Positive Spring Retraction
• Maximum Working Pressure: 75 PSI
• Recommended Operating Range: 20 50 PSI
