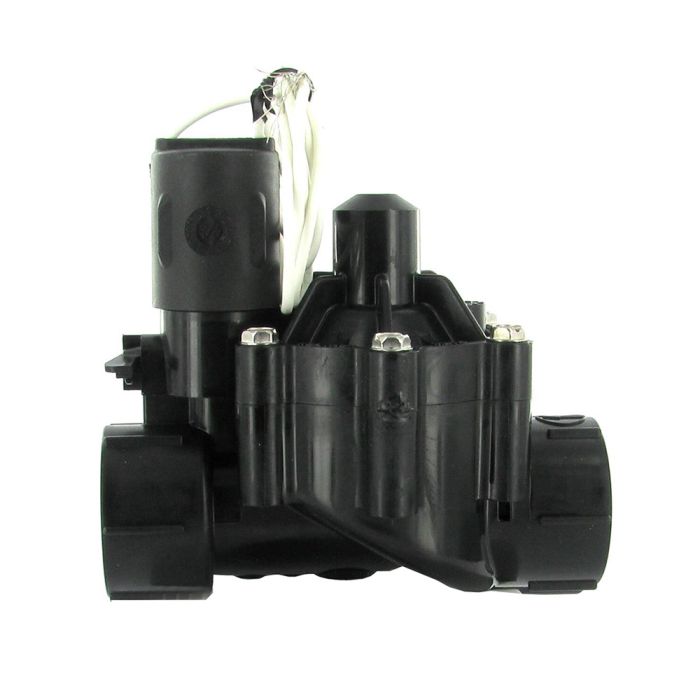

Weathermatic NITRO In-Line Valve 1 in. Slip | N-100S-H

In stock
SKU
N-100S-H
Free Shipping on Orders over $149
Sales Price $13.95 Our Price $26.46 You save 47%
Case of 20
$13.67 / each

Weathermatic NITRO In-Line Valve 1 in. Slip

  • Size: 1 in.
  • Connection: Slip
  • Valve Type: In-Line

Features & Benefits

The NEW Weathermatic Nitro Series' Unique "reverse flow" design permits equal pressure distribution on both sides of the diaphragm, regardless of line pressure, providing zero stress to prevent "stretching," a common cause of valve failure.

Weathermatic Nitro Series Valves have a reverse flow design for water conservation in the event of failure. Try the NEW Weathermatic Nitro Series Valves today! Do not use nominal voltage ratings listed above for sizing of valve wires. Wiring requires a single lead from the controller to each solenoid, plus a common neutral to all solenoids; type UF wire, U.L. listed, is recommended for all hookups

Product Details

24VAC/60Hz 24VAC/50Hz

  • Inrush: 9.48 VA
  • Inrush: 10.66 VA
  • Holding: 5.11 VA
  • Holding: 5.97 VA

Replacement Parts

  • Weathermatic 110-603SAK - Replacement Diaphragm for 1" Nitro Series Valves
  • Weathermatic S20PSAK - 24VAC Replacement Solenoid
  • 100% water tested
  • 150 psi (10,3 bar) rating
  • Unique "reverse flow" design permits equal pressure distribution on both sides of the diaphragm, regardless of line pressure, providing zero stress to prevent "stretching," a common cause of valve failure
  • Reverse flow design for water conservation in the event of failure
  • Diaphragm's self cleaning ports constantly flex, inhibiting sand and silt from blocking valve action
  • Molded shock cone for smooth operation and reduction of water hammer
  • Easy-to-use internal manual bleed lever; bleeds valve downstream; has positive stops for open and closed positions
  • Marine-grade S20P solenoid with stainless steel actuator
  • Engineering grade PVC body and cover with combination hex, slot and Phillips retaining screws
  • Non-rising flow control stem throttles valve from full open to closed position on flow control models
More Information
Brand Weathermatic
Type Valve
Body Material Enginnering Grade PVC
Application Residential
Solenoid Yes
Warranty 2 Years
Size 1 in.
Connection Slip
Flow Control No Flow Control
Valve Type In-Line
