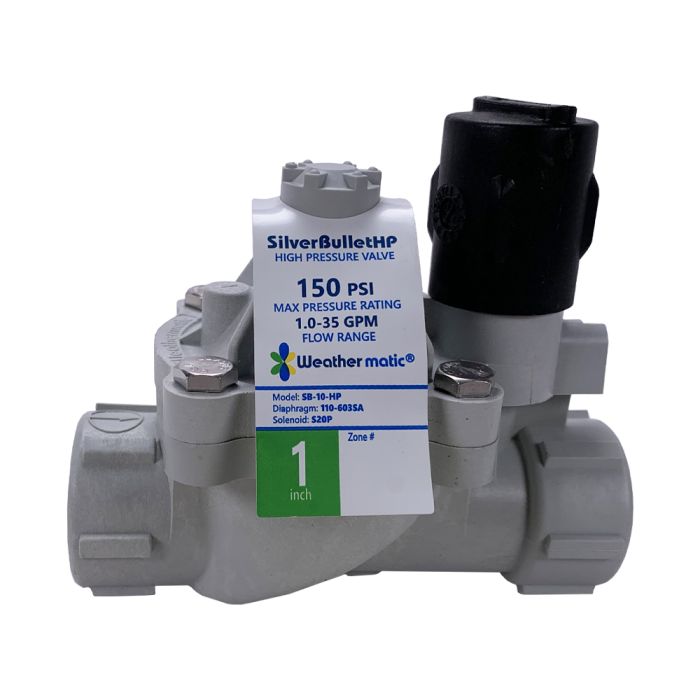

Weathermatic SilverBullet Inline Valve 1 in. FPT | 12024E-10-H

•  110-003SA1" Weathermatic 12024E-10-H Valve
• Without Flow Control
• 1" Female Threaded Inlet/ Outlet
• NOTE: The 110-003SAK diaphragm DOES NOT fit the new series of Weathermatic SilverBullet Valve.

Features & Benefits

Weathermatic Silver Bullet HP Valves feature superior materials, four-bolt covers, an unmatched manual bleed, a shock cone to reduce water hammer and a revolutionary reverse flow design which prevents valve failure in the open position. Excellent for micro-irrigation as valve will operate as low a 1 GPH. The unique "reverse flow" porting design permits equal pressure distribution on both sides of the diaphragm, regardless of line pressure providing zero stress to prevent "stretching," a common cause of valve failure.

The newly designed Silver Bullet HP Valve includes the following features:

• New body design
• Pressure activated diaphragm
• Valve identification system
• New 5- year trade warranty

Standard Features Include:

• 150 PSI (10.3 BAR) rating
• Unique "reverse flow" design permits equal pressure distribution on both sides of the diaphragm, regardless of line pressure, providing zero stress to prevent "stretching", a common cause of valve failure.
• Reverse flow design for water conservation in the event of failure
• Diaphragm's self-cleaning ports constantly flwx, inhibiting sand and silt from blocking valve action
• Molded shock cone for smooth operation and reduction of water hammer
• Easy-to-use internal manual bleed lever; bleeds valve downstream; has positive stops for open and closed positions
• Marine-grade S20P solenoid with stainless steel actuator
• High-strength glass-filled nylon body and cover with 1/4" stainless steel cover bolts and mating brass body inserts
• Non-rising flow control stem throttles valve from full open to closed position on flow control models 100 % water tested

Product Details

• 12024E-10-H (1 in. FIP/25 mm nominal)*
• 12024EF-10-H (1 in. FIP w/ flow control)*
• 12024EF-15-H (1-1/2 in. FIP with flow control)*
• 12024EF-20-H (2 in.  FIP with flow control)*
• 150psi (10'0 bar) rating

Dimensions

• 5" L x 3.13" W x 4.75" H (12.7 cm x 7.95 cm x 12.07 cm)

Flow Range

• 0.2 to 180 GPM (0 to 3.5 m3/hr)

Electrical

• 24VAC/60HZ 24VAC/50Hz
• Inrush: 9.48 VA Inrush: 10.66 VA
• Holding: 5.11 VA Holding: 5.97 VA

For Diaphram replacement see the Weathermatic Nitro replacement valve diagram 1 in. (110-603SAK)

• Same design.  size, and shape
