Weathermatic SilverBullet In-Line Valve with Flow Control 1-1/2 in. FPT | 12024EF-15-H

In stock
SKU
12024EF-15-H
Free Shipping on Orders over $149
Sales Price $54.55 Our Price $94.35 You save 42%
Case of 12
$53.46 / each

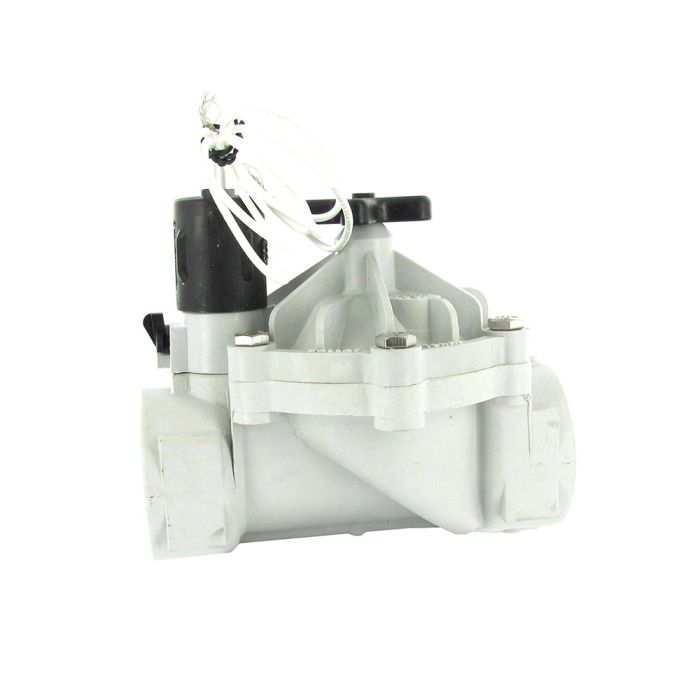

Weathermatic SilverBullet In-Line Valve with Flow Control 1-1/2 in. FPT

  • Valve Type: In-Line
  • With Flow Control
  • Size: 1-1/2 in.

Features & Benefits

Weathermatic Silver Bullet HP Valves feature superior materials, four-bolt covers, an unmatched manual bleed, a shock cone to reduce water hammer and a revolutionary reverse flow design which prevents valve failure in the open position. Excellent for micro-irrigation as valve will operate as low a 1 GPH. The unique "reverse flow" porting design permits equal pressure distribution on both sides of the diaphragm, regardless of line pressure providing zero stress to prevent "stretching," a common cause of valve failure.

The newly designed Silver Bullet HP Valve includes the following features:

  • New body design
  • Pressure activated diaphragm
  • Valve identification system
  • New 5- year trade warranty

Standard Features Include:

  • 150 PSI (10.3 BAR) rating
  • Unique "reverse flow" design permits equal pressure distribution on both sides of the diaphragm, regardless of line pressure, providing zero stress to prevent "stretching", a common cause of valve failure.
  • Reverse flow design for water conservation in the event of failure
  • Diaphragm's self-cleaning ports constantly flwx, inhibiting sand and silt from blocking valve action
  • Molded shock cone for smooth operation and reduction of water hammer
  • Easy-to-use internal manual bleed lever; bleeds valve downstream; has positive stops for open and closed positions
  •
  • Marine-grade S20P solenoid with stainless steel actuator
  • High-strength glass-filled nylon body and cover with 1/4" stainless steel cover bolts and mating brass body inserts
  • Non-rising flow control stem throttles valve from full open to closed position on flow control models 100 % water tested

Product Details

Model / SKU Description
SB-10-HP / 12024E-10-H 1" 24 VAC
SB-10F-HP / 12024EF-10-H 1" 24 VAC with Flow Control
SB-15F-HP / 12024EF-15-H 1 1/2" VAC with Flow Control
SB-20F-HP / 2024EF-20-H 2" VAC with Flow Control


Dimensions


  • 5" L x 3.13" W x 4.75" H (12.7 cm x 7.95 cm x 12.07 cm)

Flow Range

  • 0.2 to 180 GPM (0 to 3.5 m3/hr)

Electrical

  • 24VAC/60HZ 24VAC/50Hz
  • Inrush: 9.48 VA Inrush: 10.66 VA
  • Holding: 5.11 VA Holding: 5.97 VA
Brand:
Weathermatic
Type:
Valve
Body Material:
Glass-Filled Nylon
Application:
Residential and Commercial
Solenoid:
Yes
Size:
1-1/2 in.
Connection:
FPT
Flow Control:
Flow Control
Valve Type:
In-Line
