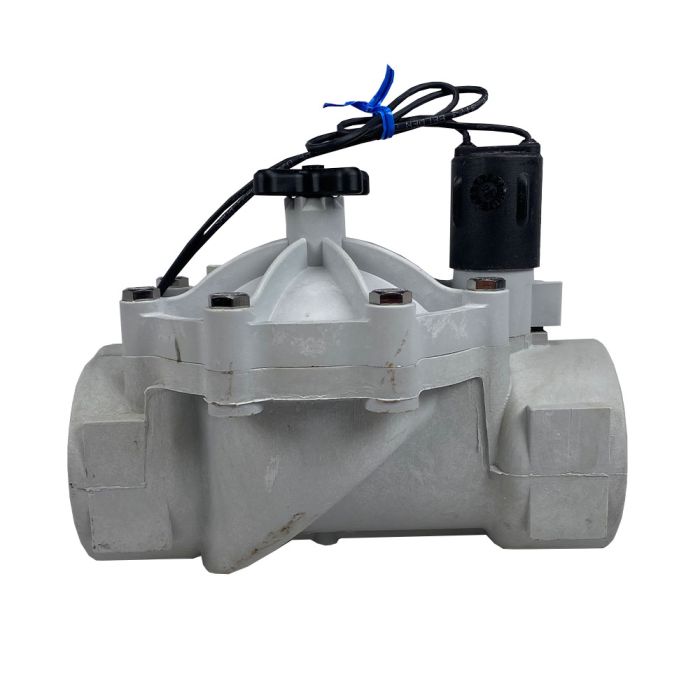

Weathermatic SilverBullet In-Line Valve with Flow Control 2 in. FPT | 12024EF-20-H

In stock
SKU
12024EF-20-H
Free Shipping on Orders over $149
Sales Price $75.55 Our Price $131.40 You save 43%

WEATHERMATIC 12000 SERIES IRRIGATION VALVES:

Weathermatic 12000 Series Valves feature superior materials, four-bolt covers, an unmatched manual bleed, a shock cone to reduce water hammer and a revolutionary reverse flow design which prevents valve failure in the open position. Excellent for micro-irrigation as valve will operate as low a 1 GPH. The unique "reverse flow" porting design permits equal pressure distribution on both sides of the diaphragm, regardless of line pressure providing zero stress to prevent "stretching," a common cause of valve failure.

Features & Benefits
  • Unique "reverse flow" porting design permits equal pressure distribution on both sides of the diaphragm, regardless of line pressure providing zero stress to prevent "stretching," a common cause of valve failure
  • Reverse flow design for water conservation in the event of failure
  • Diaphragm's self cleaning ports constantly flex, inhibiting sand and silt from blocking valve action
  • Molded shock cone for smooth operation and reduction of water hammer
  • Easy-to-use internal manual bleed lever; bleeds valve downstream; has stops for open and closed positions
  • Marine-grade S20P solenoid with stainless steel actuator
  • High-strength glass-filled nylon body and cover with 1/4" stainless steel cover bolts and mating brass body inserts
  • Non-rising flow control stem throttles valve from full open to closed position on flow control models
Specifications
  • 12024E-10-H (1 in. FIP/25mm nominal)*
  • 12024EF-10-H (1 in. FIP w/flow control)*
  • 12024EF-15-H (1-1/2" FIP with flow control)*
  • 12024EF-20-H (2" FIP with flow control)*
  • 150 psi (10;0 bar) rating
  • Wiring requires a single lead from the controller to each solenoid; plus a common neutral to all solenoids; type UF wire; U.L. listed; in recommended for all hookups.
  • 24 VAC/60 Hz
    • Inrush: 9.48 VA
    • Holding: 5.11 VA
  • 24 VAC/50 Hz
    • Inrush: 10.66 VA
    • Holding: 5.97 VA
Brand:
Weathermatic
Size:
2 in.
Series:
Silver Bullet
Valve Type:
In-Line
Solenoid:
Yes
Type:
Valve
Body Material:
Glass-Filled Nylon
Application:
Residential and Commercial
Connection:
FPT
Flow Control:
Flow Control
Advance Features:
Flow Control, Reverse Flow
Brochure (2.35 MB)
