FX Luminaire PB Up Light

Only %1 left
SKU
PB-SERIES

Note: Item does not qualify for Priority Processing. Please anticipate a delay in shipment.

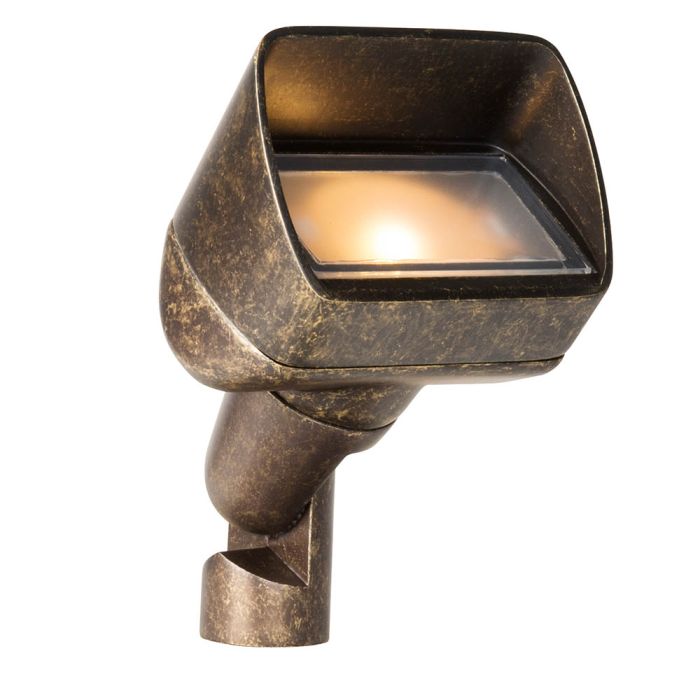

FX Luminaire PB Up Light

Overview

The PB is a compact LED Wall Wash lighting solution. Available in one or three LED with full color lens options off frosted, blue, amber, and green included. The wider angle of the PB allows a broader lighting option for larger structures and spaces. Engineered with solid construction, yet petite in size.

Features & Benefits

  • Die-cast aluminum
  • Cree® integrated LEDs
  • Compatible with Luxor technology
  • Phase and PWM dimmable
  • Input voltage: 10-15V
  • Two-layer marine-grade anodization and powder coat finish
  • Color temperature filters

Product Details

  • Total Lumens
    • 1LED: 67
    • 3LED: 160
    • 3LEDT: 146
    • ZDC: 122
  • Input Voltage
    • 1LED: 10 to 15V
    • 3LED: 10 to 15V
    • 3LEDT: 10 o 15V
    • ZDC: 11 to 15V
  • Input Power (W)
    • 1LED: 2.0
    • 3LED: 4.2
    • 3LEDT: 4.2
    • ZDC: 6.0
  • VA
    • 1LED: 2.4
    • 3LED: 4.5
    • 3LEDT: 4.5
    • ZDC: 7.2
  • Efficacy (Lumens/Watt)
    • 1LED: 34
    • 3LED: 39
    • 3LEDT: 42
    • ZDC: 37
  • Color Rendering Index (CRI)
    • 1LED: 83
    • 3LED: 82
    • 3LEDT: --
    • ZDC: 83

Specifications Cont'd:



  •  Dimming
    • 1LED: PWM, Phase**
    • 3LED: PWM, Phase**
    • 3LEDT: PWM, Phase**
    • ZDC:  --
  • RGBW Available
    • 1LED: No
    • 3LED: No
    • 3LEDT: No
    • ZDC: Yes
  • Luxor Compatibility
    • Default
      • 1LED: Zoning
      • 3LED:Zoning
      • 3LEDT: --
      • ZDC: Zoning
    • ZD Option
      • 1LED: Zoning/Dimming/
      • 3LED: Zoning/Dimming/
      • 3LEDT: Zoning/Dimming/
      • ZDC: -
    • ZDC Option
      • 3LED:: --
      • 6LED: --
      • 9LED:
      • ZDC: Zoning/Dimming/Color
  • Minimum Rated Life (L70)
    • All 50,000 Hrs
More Information
Brand FX Luminaire
Type Up Light
Warranty 10 Years
