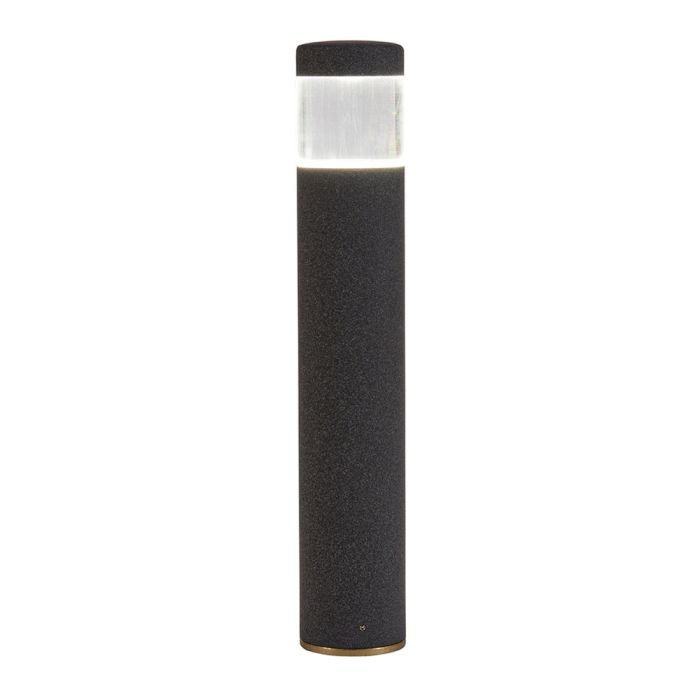

FX Luminaire PM Path Light

Out of stock
SKU
PM-SERIES
Free Shipping on Orders over $149

FX Luminaire PM Path Light

Overview

Designed for mid-sized landscapes, the PM is engineered without compromise in the spirit of a large contemporary commercial bollard. Precisely milled from 6061 T-6 alloy, this model looks and performs like no other. Computer designed parabolic reflector, diffuser cone and optics work together to produce long projection beam spread with no glare.

Features & Benefits

  • Die-cast aluminum
  • Cree® integrated LEDs
  • Compatible with Luxor technology
  • Phase and PWM dimmable
  • Input voltage: 10-15V
  • Two-layer marine-grade anodization and powder coat finish
  • Color temperature filters

Product Details

  • Total Lumens
    • 1LED: 41
    • 3LED: 106
    • 6LED: 186
    • 9LED: 219
    • ZDC: 74
  • Input Voltage
    • 1LED: 10 to 15v
    • 3LED: 10 to 15v
    • 6LED: 10 to 15v
    • 9LED: 10 to 15V
    • ZDC: 11 to 15v
  • Input Power (W)
    • 1LED: 2.0
    • 3LED: 4.2
    • 6LED: 10.1
    • 9LED: 11.2
    • ZDC: 9.1
  • VA
    • 1LED: 2.4
    • 3LED: 4.5
    • 6LED: 13.5
    • 9LED: 13.5
    • ZDC: 11.0
  • Efficacy (Lumens/Watt)
    • 1LED: 114
    • 3LED: 114
    • 6LED: 114
    • 9LED: 114
    • ZDC: --
  • Color Rendering Index (CRI)
    • All 80+

Specifications Cont'd:



  •  Dimming
    • 1LED: PWM, Phase**
    • 3LED: PWM, Phase**
    • 6LED: PWM, Phase**
    • 9LED: PWM, Phase**
    • ZDC: --
  • RGBW Available
    • 1LED: No
    • 3LED: No
    • 6LED: No
    • 9LED: No
    • ZDC: Yes
  • Luxor Compatibility
    • Default
      • 1LED: Zoning
      • 3LED: Zoning
      • 6LED: Zoning
      • 9LED: Zoning
      • ZDC:  --
    • ZD Option
      • 1LED: Zoning/Dimming
      • 3LED: Zoning/Dimming
      • 6LED: Zoning/Dimming
      • 9LED: Zoning/Dimming
      • ZDC: --
    • ZDC Option
      • 1LED: --
      • 3LED: --
      • 6LED: --
      • 9EDT: Zoning/Dimming
      • ZDC: Zoning/Dimming
  • Minimum Rated Life (L70)
    • All 55,000 Hrs
More Information
Brand FX Luminaire
Type Path Light
Warranty 10 Years
