Hunter ACC 12 Station Outdoor Plastic Pedestal Controller | ACC-1200-PP

Out of stock
SKU
ACC-1200-PP
Free Shipping on Orders over $149
Sales Price $4,109.65 Our Price $8,219.40 You save 50%

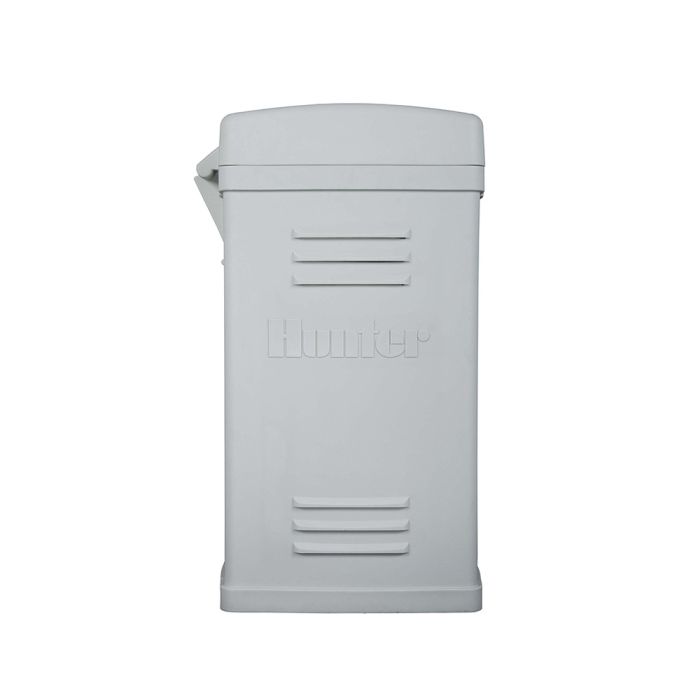

Hunter ACC-1200-PP 12 Zone ACC Sprinkler Timer And Plastic Pedestal

HUNTER’S FLAGSHIP CONTROLLER CAN STAND UP TO ANY COMMERCIAL JOB

The ACC brings the versatile features of modularity to the most advanced large-scale commercial controller in the Hunter line. The adaptable design not only allows configuration to the number of stations you desire, it also makes it easy to upgrade to two-way communication with a Hunter Central Control System. What truly sets the ACC apart is its sheer power. Intelligent overlap settings and its powerful transformer allow ACC to run up to 6 programs simultaneously, packing the most watering into the shortest water window. Real time flow monitoring allows the controller to dynamically respond to overflow conditions by station, and track system water use. The ACC boasts a total of 6 independent and 4 custom programs and the ability to assist the water manager in conforming to “watering windows.” Plus, the ACC’s large backlit LCD display offers the user a convenient means to personalize on-screen station and program names. ACC also has built-in support for the water-saving Solar Sync sensor.

Electrical Specifications

  • Transformer input: 120/240 VAC, 50/60 Hz
  • Max AC Current Draw: 120 VAC, 2 Amps; 230 VAC, 1 Amp (max computed with all programs running and optional accessories installed)
  • Transformer output (24 VAC): 4.0 A
  • Dual voltage transformer (120/240 VAC)
  • Station output (24 VAC): 0.56 A
  • P/MV output (24 VAC): 0.32 A
  • Pump/master valve: 2, normally closed
  • Sensor inputs: 4 + Flow
  • Operating temperature: 0? F to 140? F

Approvals

  • CE, UL, C-UL, C-tick, FCC
  • Plastic pedestal: IP-24
  • Metal: IP-56

All Stainless Steel (SS) Models

  • American-made Type 304 Stainless Steel 0.057" gauge steel
  • Passivated for corrosion resistance
More Information
Brand Hunter
Expandability Modular
Power Source AC Powered
Number of Programs 6
Start Times Per Program 10
Max Station Run Time (HRS) 6
Sensor Inputs 4
Outdoor Yes
Sensor Compatible Flow, Rain, Freeze, Solar
Rain Sensor Compatible Yes
Solar Sensor Compatible Yes
Freeze Sensor Compatible Yes
Application Light Commercial|Commercial
Warranty 5 Years
Series ACC
Zones 12
Enclosure Type Outdoor
Specifications (290.10 kB)
