Rain Bird DV, DVF, and ASVF Valve Diaphragm Repair Kit | 210746-03

Name: Rain Bird DV, DVF, and ASVF Valve Diaphragm Repair Kit | 210746-03
Brand: Rain Bird
SKU: 210746-03
Price: 13.95 USD
Availability: InStock

In stock

SKU

210746-03

Sales Price $13.95 Our Price $28.95 You save 52%

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Rain Bird DV, DVF, and ASVF Valve Diaphragm Repair Kit

Type: Valve Repair Kit
Solenoid NOT included
Compaitibility: Rain Bird DV, DVF, and ASVF Valve

Features & Benefits

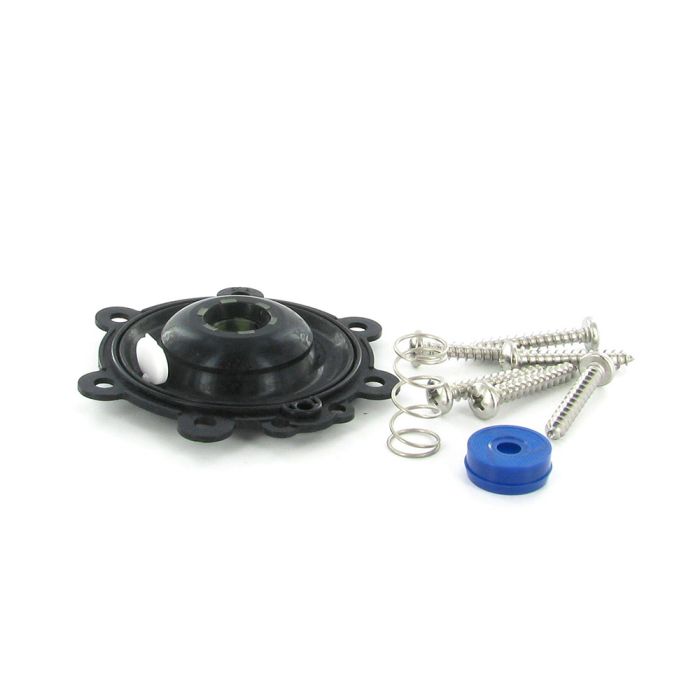

Includes

1 Diaphragm
6 Screws
1 Spring
1 Sole Filter
1 Set of Instructions

DV SERIES

Double-filtered pilot-flow design for maximum reliability
Balanced-pressure diaphragm for long life
External bleed to manually flush system of dirt and debris during installation and system start up
Internal bleed for spray-free manual operation
Energy efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
Buna-N diaphragm with self-cleaning 90-mesh (200 micron) pilot water filter and captive spring
Operates in low-flow and Xerigation® applications when the RBY filter is installed upstream
1¼” (3.2 cm) stainless steel phillips head screws
Accepts latching solenoid for use with
Rain Bird battery-operated controllers
Height: 4½” (11.4 cm); (Angle) 5½” (14 cm)
Length: 43 ⁄8” (11.1 cm);(Angle) 3¾” (9.5 cm)
(MB) 5¾” (14.6 cm)
Width: 31 3” (8.4 cm)

ASVF SERIES

Combination reliable DVF valve and atmospheric backflow preventer in one unit
Incorporates all features of DVF Series valves, plus meets I.A.P.M.O. and A.S.S.E. listing specifications and City of Los Angeles listing approved
Must be installed at least 6” (15.2 cm) above the highest point of water in the sprinkler pipe it serves
No valve can be located downstream of the anti-siphon valve
Consult local codes
Height: 6¼” (15.8 cm)
Length: 61 ⁄10” (15.5 cm)
Width: 31 ⁄5” (8.1 cm)

DV SERIES PARTS
