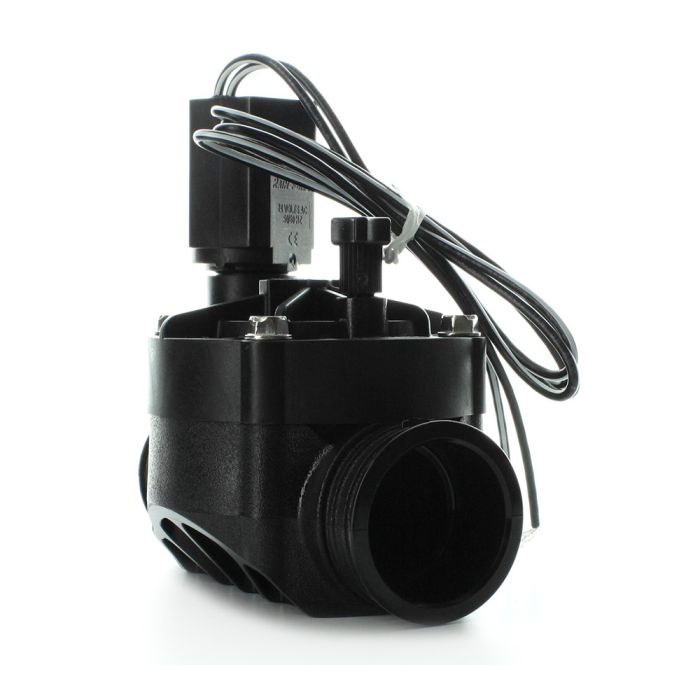

Rain Bird HV Valves offer the features that irrigation professionals demand - at a competitive price point - to assure maximum value. Count on outstanding performance, unmatched durability, simplified installation and ease of maintenance. Like all Rain Bird valves, HV Valves are built to work with any standard sprinkler timer.
Installs Quickly A more compact design makes installation easier and allows for a more robust operation as compared to competing valves.
Services Easily Heavy-duty construction and fewer screws simplify serviceability to ensure hassle-free performance for years to come.
Performs Reliably This reverse-flow valve is engineered to perform in any condition and is proven to stand up to the diverse watering needs of your landscape.
Withstands Time Backed by the proven performance of Rain Bird valves, the HV Valve is built to perform in the most challenging environments.
Reliability
Eccentric diaphragm for smooth closing, less water hammer
Glass-filled polypropylene body for strength
Reverse flow normally closed design
Double-filtered pilot flow for maximum reliability
Balanced-pressure diaphragm for long life
Buna-N diaphragm with self-cleaning 90-mesh (200 micron) pilot water filter and stainless steel spring
Versatility
Compact design, 2.54 spin radius for tight installations
Operates in low-flow and Xerigation applications when the RBY filter is installed upstream
External bleed to manually flush system of dirt and debris during installation and system start up
Internal bleed for spray-free manual operation
Unique, easy-to-turn, pressure-assisted flow control mechanism option available
Ease of Service
Captive multi-drive screws for ease of access
Your choice of tools to open valve (nut driver, Phillips head screw driver, slotted head screw driver)
Four screws for quick access to diaphragm
Trouble-free service with few parts
Diaphragm locating post for positive installation
Product Details
Operating Range
Pressure: 15 to 150 PSI (1,0 to 10,3 bar)
Flow: 0.2 to 30 GPM (0,05 to 6,82 m3/h; 0,01 to 1,89 l/s); for flows below 3 GPM (0,68 m3/h; 0,19 l/s) or any Xerigation application, use RBY-100-200MX filter installed upstream
Operating Temperatures: Water temperature up to 110° F (43° C); ambient temperature up to 125° F (52° C)
