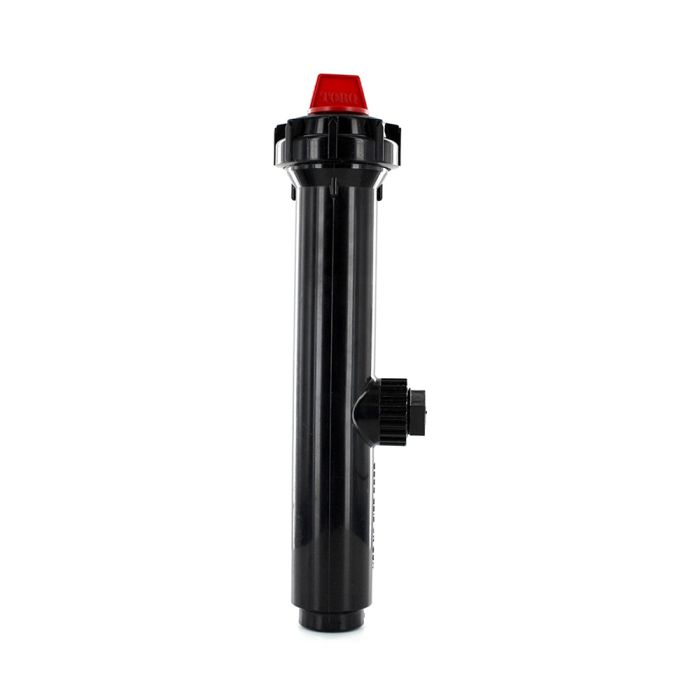

Toro 570Z Series spray heads provide everything needed for residential and commercial contractors to satisfy all installation and retrofit requirements. In combination with Toro spray and rotating nozzles, 570Z Series spray heads can be configured in hundreds of combinations and present an unparalleled range of flexibility. Available in 2", 3", 4", 6" and 12" models with both bottom and side inlet thread options, Toro 570Z Series spray heads are further available with patented in-stem X-Flow Technology and Pressure Regulating water-saving features. Trusted for over 25 years, Toro's 570Z Series spray heads are the ideal choice.
Features and Benefits
Zero Flush Wiper Seal The elimination of flushing on pop-up allows for more sprinklers to be installed per zone.
Patented X-Flow Technology The X-Flow in-stem flow shut-off device is built into the riser and restricts water loss by 99% should the nozzle be removed or damaged. The exclusive X-Flow device greatly reduces water waste, landscape erosion, and wet hardscape safety concerns.Furthermore, X-Flow allows for dry nozzle and filter replacement or system maintenance while the system is running.
One-Piece Check Valve Pre-installed from the factory or easily installed in the field, Toro's one-piece check valve prevents low-head drainage on elevation changes of up to 10 feet.
Ratcheting Riser Quick and precise arc adjustment on all pop-up models.
Manuals and Literature
|Nozzle Connection||Male Nozzles|
|Side Inlet||Side Inlet|
|Inlet Size||1/2 in.|
|Check Valve||No Check Valve|
|Spray Head Spring||Stainless Steel|
|Nozzle Installed||No Nozzle (Flush Plug Only)|
|Spray Head Wiper Seal||Zero Flush|
|Pressure Regulation||No Pressure Regulation|
|Pop-Up Height||6 in.|
|Advanced Features||No Pressure Regulation|
