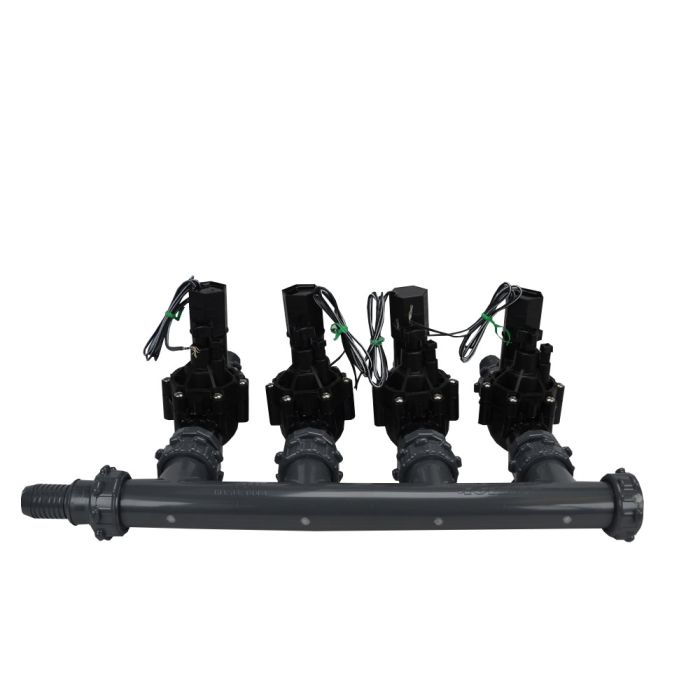

Combining the quality MS Series Manifold System with the reliable Hunter PGV series or Rain Bird 100-DV series valves, these ready-to-install kits take the hassle out of specifying, configuring, and installing quality valve systems. We use only high-quality parts and, with our large number of available configurations, we are sure there is a valve manifold available for virtually any application.
This Quadruple Manifold is used to build a 4 valve manifold or to connect to another MS Series manifold to add 4 more valves. The valve manifolds are designed to connect double; triple, or quadruple manifolds together using an MS series coupling to make larger manifolds if needed.
LV9000
Both waterproof and corrosion proof, this pre-filled with petroleum grease wire connector is great for use with low voltage landscape lighting and or sprinkler systems. The wire nut comes with a yellow nut for wire splicing.
MS-MA
This adapter is used to connect a valve with a Female Thread Inlet to the valve manifold. The F Buttress side of this adapter connects to the valve manifold. The M NPT side of this adapter screws into the female threads of a valve which has a 1" fpt (female pipe thread) inlet.
MS-CAP
This cap is used to cap the end of the valve manifold. The valve manifolds are designed to connect double; triple, or quadruple manifolds together to make larger manifolds if needed. The cap is used to cap the end of the manifold to seal it off when no additional manifolds need to be added.

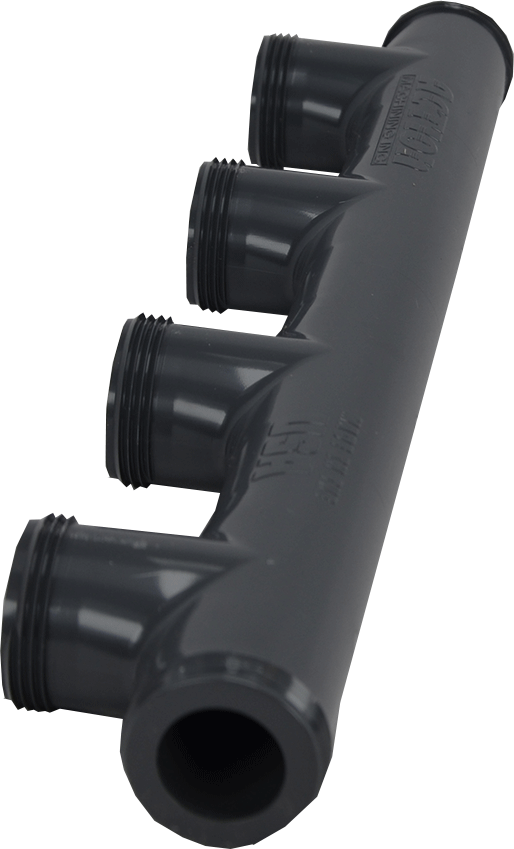

MS-QM
This Quadruple Manifold is used to build a 4 valve manifold or to connect to another MS Series manifold to add 4 more valves. The valve manifolds are designed to connect double; triple; or quadruple manifolds together using a MS series coupling to make larger manifolds if needed.
MS-100IA
Action Machine Manifold Insert Adapter 1 in. FBT x Barb
Manifold Kit Part List
(This kit contains these pre-assembled parts)
| Image | QTY | Product Code |
 | 4 | 100-DVF w/ Flow Control |
 | 1 | MS-QM |
 | 4 | MS-MA |
 | 5 | MS-100IA |

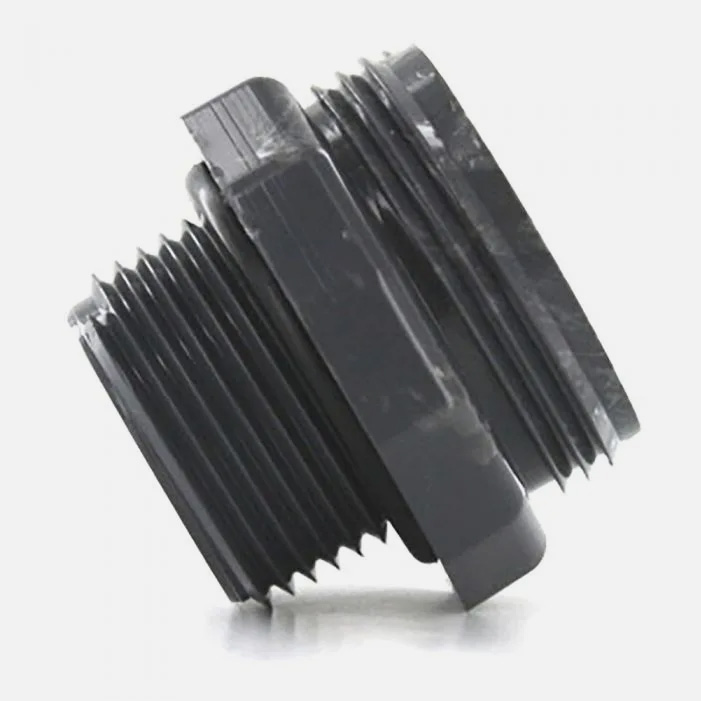

 | 4 | MS-NIP |
 | 1 | MS-CAP |
 | 8 | LV9000 |
| Brand | SW |
|---|---|
| Product Type | Premium Manifold Kits |
| Valve Type | 100-DVF-NPT |
| Connection | Barb |
| Outlets | 4 |
| Application | Residential |
| Size | 1 in. |
