2 GPH Micro Fogger 1/4 in. (5 ct.) | 07-056-B05

SKU

07-056-B05

Sales Price $5.22 Our Price $11.95 You save 56%

Overview

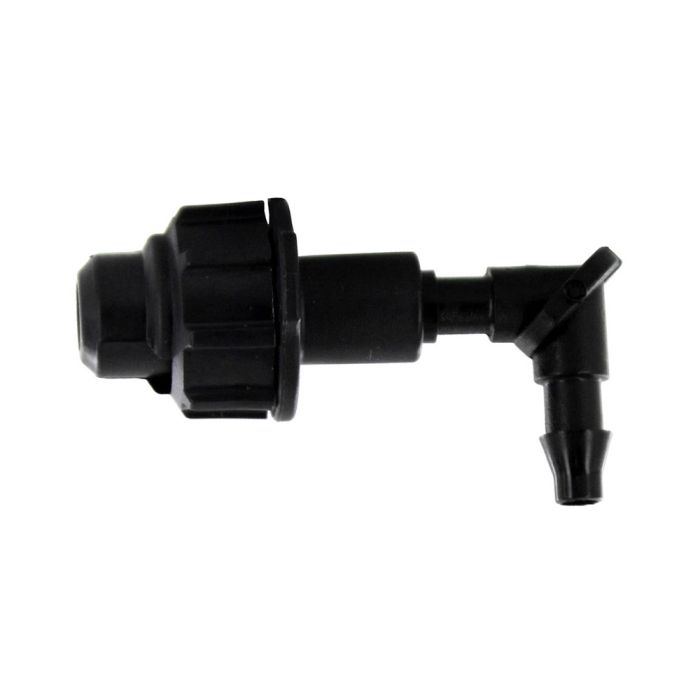

2 GPH Micro Fogger 1/4 in.

Per Bag: 5 ct.
Size: 1/4 in.
Flow Rate: 2 GPH

Features & Benefits

This mister has a very fine spray with a flow rate of 2 GPH and coverage of up to 8" full circle when used with the stabilizer stake and barbed elbow. Ideal use of the mister is on 8" to 24" diameter pots, and baskets with the mister hung upside down 4" to 5" above the plant using the 6" stabilizer. For larger baskets hang the mister from a 1/4" drip micro tubing 8" to 12" above the basket for up to 2' in diameter.

Product Details

Incorporates a vortex design, which spins the water droplets into a fine mist
Modular, lightweight, and easy to install, maintain and configure
Designed without a bridge to prevent dripping
Three-part construction with "O" ring for a tight seal
Flow Rates: .8-3 GPH
Operating Pressure: 35-80 PSI
Wetting Diameter: up to 4'
Trajectory: 80-100 degrees
Available with 1/2" MNPT thread or 1/4" barbed side outlet
Average Droplet Size: 60-100 microns
Filter Requirement: 200 Mesh
Body: Polyacetal
"O" Ring: Buna-N

Flow Rate vs Pressure

Nozzle color	Purple	Black	Green	Brown	Gray
Nozzle size (IN)	0.010	0.0.13	0.020	0.025	0.035
Flow rate	0.8	1.0	1.5	2.0	3.0
Diameter (FT)	2.5	2.5	33.5	3.5	4.0
Misting angle	70°	70°	70°	70°	70°

Flow Rates (GPH)

35 PS	0.76	0.85	1.36	1.68	2.40
40 PSI	0.80	0.91	1.49	1.83	2.61
45 PSI	0.84	0.98	1.52	1.91	2.78
50 PSI	0.85	1.04	1.58	2.02	2.91
55 PSI	0.87	1.07	1.64	2.09	3.02
60 PSI	0.90	1.14	1.71	2.18	3.17
65 PSI	0.91	1.17	1.74	2.26	3.25
70 PSI	1.01	1.26	1.81	2.31	3.42
