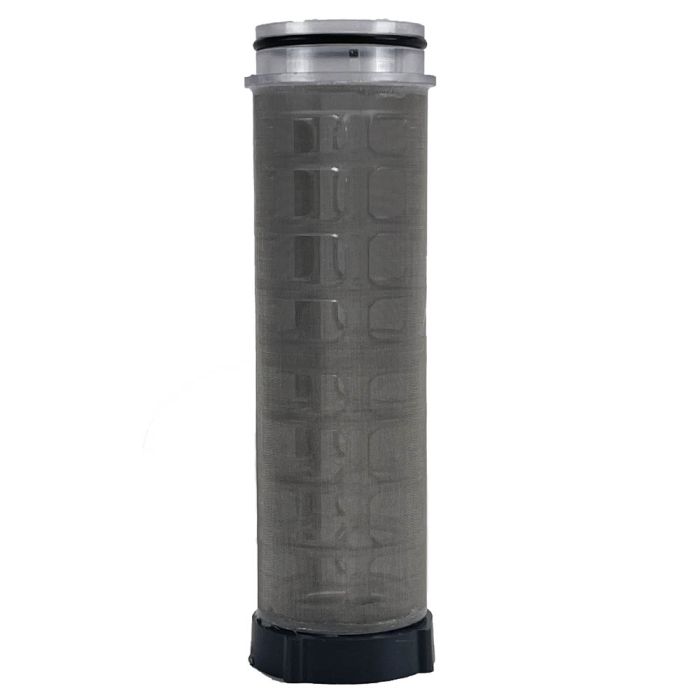

For environments where sediment, sand, or debris can be introduced into your pipes, an Action Filter is the perfect solution for removing those foreign objects with ultimate efficiency. An Action Filter will pay for itself over time by saving you money on damaged or broken components. The transparent filter shield makes it easy to look in and see how much sediment has been separated and when it's time to clean the filter. Stainless steel mesh filter and heavy duty construction throughout the device make it an excellent choice for high pressure situations. Cleaning of the filter is easy and can be done by hand without using tools. Action Filters are the perfect solution for residential applications as well as smaller commercial installations.
Features & Benefits
|Model||Inlet & Outlet||Flow Rate (GPM)||P.S.I. Loss||Length & Width|
|AFI 1.0||1 in.||0 - 40||3.3 @ 20 GPM||9 x 5 in.|
|AFI 1.5||1-1/2 in.||0 - 60||2.4 @ 35 GPM||12 x 5-5/8 in.|
|AFI 2.0||2 in.||0 - 90||3.7 @ 60 GPM||13-3/4 x 6-1/4 in.|
|Max Temperature (°F)||up to 120|
|Flow Capacity||0 - 60 GPM|
