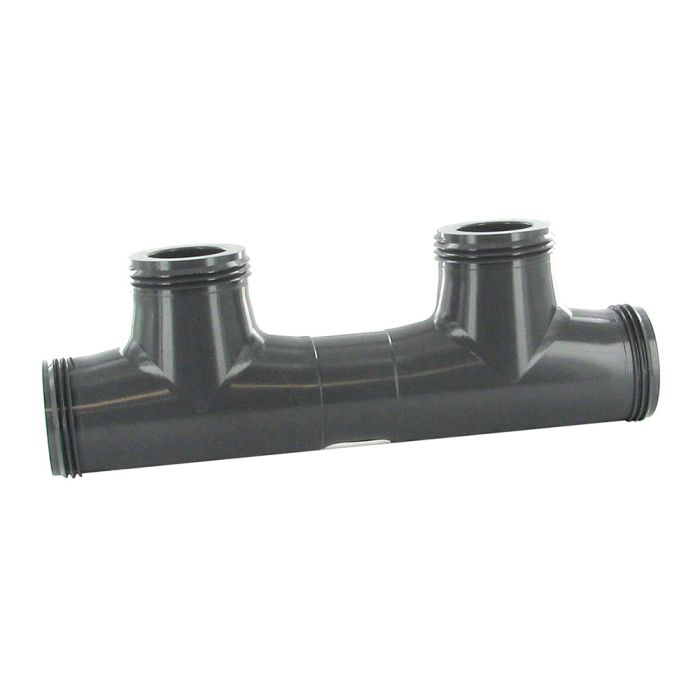

This Double Manifold is used to build a 2 valve manifold or to connect to another MS Series manifold to add 2 more valves. The valve manifolds are designed to connect double; triple, or quadruple manifolds together using an MS series coupling to make larger manifolds if needed.
Half union fittings and adapters mate with manifold pieces to build a quality 1" manifold system for quick and convenient installations.
Tight O-ring seals eliminate leakage.
Variety of outlets; adapters; and couplings offered for different size PVC and poly pipe.
Size: SCH80
Color: Gray
Operating pressure up to 235 psi at 73 F (23 C)
| Part/ Sku | Description |
| MS-DM | double manifold with M Buttress Threads |
| MS-TM | triple manifold with M Buttress Threads |
| MS-QM | quadruple manifold with M Buttress Threads |
| MS-MA | male adapter |
| MS-FA | female adapter |
| MS-NIP | male NPT x buttress nipple |
| MS-FNIP | female NPT x buttress nipple |
| MS-CAP | cap with F Buttress Threads |
| MS-CPLG | coupling |
| MS-125x100 | 1 1/4" spigot x 1" slip adapter |
| MS-100x075 | 1" spigot x 3/4" slip adapter |
| MS-100IA | 1" insert adapter |
| MS-075IA: | 3/4" insert adapter |
| Brand | Action Machine |
|---|---|
| Product Type | Premium Manifold Fittings |
| Series | Manifold Tee |
| Warranty | 1 Year |
| Size | 1 in. |
| Connection | MBT |
