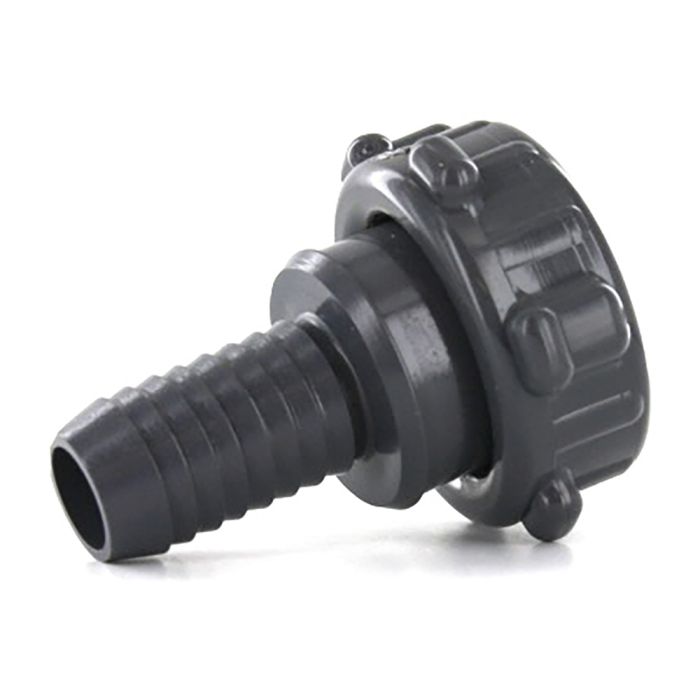

This 3/4" Insert Adapter is used to provide a connection into or out of the manifold for 3/4" Poly pipe or to connect to the outlet of a valve on the manifold. To connect Poly pipe push 3/4" poly pipe over the barb and clamp tight using Oetiker or screw clamps. This adapter is typically used with a MS-NIP Adapter when used as the outlet to a valve on the manifold system. The MS-NIP adapter is used to connect a valve with a Female Thread Outlet to the F Buttress of a MS Manifold System adapter such as one of the following: MS-100x075; MS-125x100; MS-075IA; or MS-100IA. The MS-NIP adapter allows you to attach the MS-075IA Adapter to the outlet of a 1" fpt valve. For example: screw the MS-NIP into the 1" fpt outlet of a valve then attach the MS-075IA to make a 3/4" barb outlet on the valve to connect to 3/4" poly pipe.
The valve manifolds are designed to connect double; triple; or quadruple manifolds together using a MS series coupling to make larger manifolds if needed.
|Connection||FBT x Barb|
|Type||Manifold Insert Adapter|
