Antelco 1 GPH Pinch Drip Emitter | A30715

SKU

A30715

Sales Price $0.38 Our Price $0.59 You save 36%

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

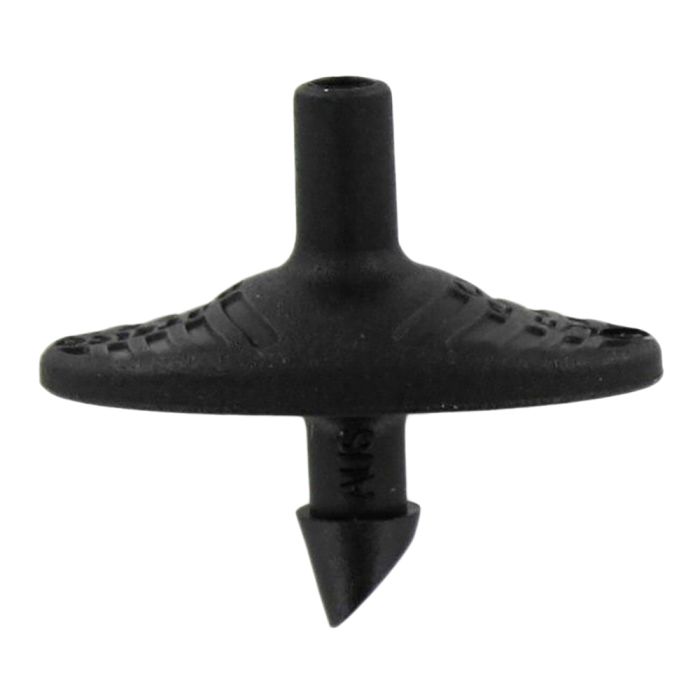

Antelco 1 GPH Pinch Drip Emitter

Operating PSI: 5 - 50 PSI
Flow Rate: 1 GPH
Type: Pinch Drip Emitters

Features & Benefits

A Pressure Compensating (PC) dripper with a sealed turbulent flow path and diaphragm to maintain uniform flow rates over a wide range of operating pressures. Low profile design to minimize the risk of dislodgement from supply tubing and ergonomic finger grips for ease of installation.

Product Details

Low manufacturing coefficient of variation (Cv) to provide high performance
(conforms to ISO 9261).
Three color-coded flow rates: 1/2 gph, 1 gph & 2 gph.  Self-flushing cleaning action at low pressures.
Insect baffle to minimize blockages.
Self piercing inlet barb has a built-in filter to minimize the risk of blockages.
UV stabilized materials for long life.

Applications: Vineyards, orchards, row crops, and landscape applications

Performance Chart

Pressure (psi)	Flow (gph)	Flow (gph)	Flow (gph)
	Red 1/2 gph	Black 1 gph	Green 2 gph
5	0.45	0.77	1.28
10	0.60	1.06	1.78
15	0.60	1.10	1.93
20	0.60	1.14	1.96
25	0.61	1.20	2.00
30	0.62	1.22	2.03
35	0.62	1.23	2.03
40	0.61	1.23	2.03
45	0.60	1.21	2.00
50	0.58	1.20	1.96
MINIMUM FLOW PATH DIMENSION (inch)	0.027 x 0.024	0.031 x 0.031	0.047 x 0.035
