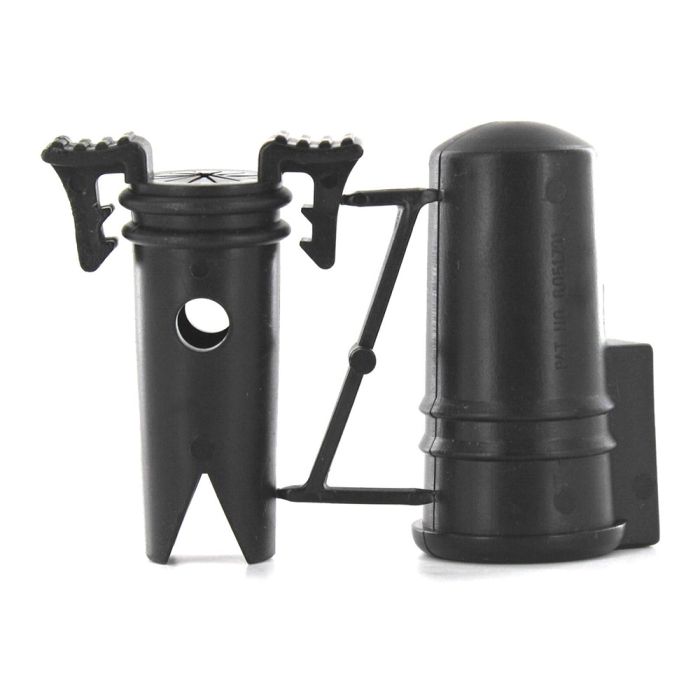

Blazing Waterproof Medium Wire Connector | LV9500

Installation Instructions

1. Important! Shut off the power before installing or removing the connector.
2. Strip wires 3/4 in. and group bare wire ends together. Pre-twist stranded wire; DO NOT solid wire. If using both wire types, you must wrap stranded wire around untwisted solid wires.
3. Insert wires through flexible sealing fingers and bend bare wire ends together into either "V-Channel." With proper 3/4 in. strip length, wire tips just reach to edge of round hole below "V."
4. Separate the connector, removing plastic "link" or "leg" from inner sleeve.
5. Push inner sleeve into pre-filled outer sleeve until double-locked, ensuring bending sleeve does not come down over either latch. Prefilled silicone fully waterproofs the connection. Do not reuse.

Warranty

1 Year

• Length: 2.3 in.
• Width: 1 in.
• Wire Type: Copper/Copper
• Wire Range: Min #18/Max #10
• Temperature Rating: 194°F (90°C)
• Silicone Sealant Temperature: -40°F to 400°F
• Yellow nut is UL Listed and flame retardant
