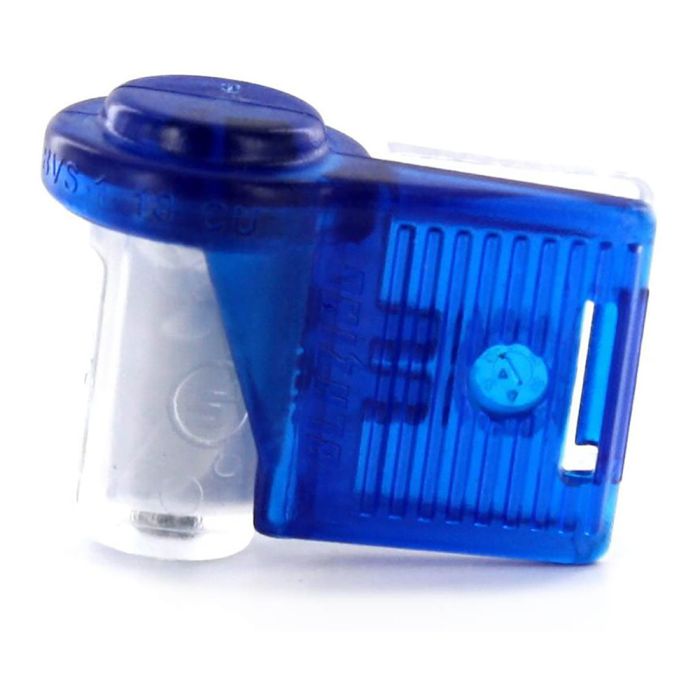

Blazing Waterproof Small SnapLoc Connector | BVS1

In stock
SKU
BVS1
Free Shipping on Orders over $149
Sales Price $0.75 Our Price $2.53 You save 70%

Blazing Waterproof Small SnapLoc Connector

  • Type: 2-Wire Waterproof Connector
  • Temperature Rating: 221°F
  • Wire Range: #12 - #20
  • Max Voltage: 600V

Features & Benefits

Rated #1 in the industry, this waterproof / corrosion-proof connector saves you money and time with its patented One-step installation. For use in direct bury applications, this connector needs no pre-twisting when applying in use and each connection comes pre-filled with dielectric silicone sealant ensuring never to harden.

  • For use in irrigation (BVS) and landscape lighting (BLS) applications
  • Waterproof
  • Low Voltage
  • Silicone filled connector
  • Safe, fast and reliable
  • Strong wire restraint
  • BVS1: Max 30V
  • BVS2: Max 30V
  • BLS10: Max 15V, 10AMPS

Product Details

  • Max. Voltage: 30V Max. building wire
  • Connector Size: 1.460" x 1.04"
  • Wire Type: Copper/Copper
  • Wire Range: #18 SOL/STR
  • Temperature Rating: 105°C (221°F)
  • Silicone Sealant Temperature: -40°F to 400°F

Installation Instructions:

IMPORTANT: Turn off power before installing or removing connector. Product to be used in accordance with local and national codes.

  1. Rotate wings fully apart beyond 90 degrees.
  2. Insert unstripped wires into holes. Push wires to back of the connector (wire ends should be visible through clear back of connector).
  3. Hold wires in place while squeezing handles together until the connector snaps shut.

Measurements

  • A - 1.460"
  • B - 1.040"
  • C - 1.080"
Brand:
Blazing Products
Type:
2-Wire Waterproof Connector
Temperature Rating:
221°F
Wire Range:
#12 - #20
Max Voltage:
600V
Cutsheet (404.56 kB)
