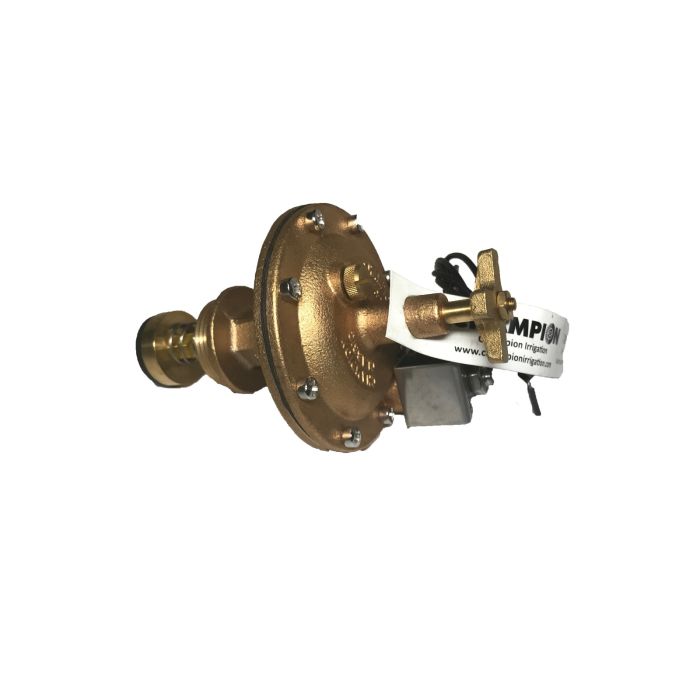

Champion Brass Automatic Actuator 1 in. | CL-100-C

Champion CL-100-C 1 in. Automatic Actuator Yellow Brass:

• Easily converts Champion manual valves to automatic operation ( Champion 100,200,300, and 466 valves )
• Compatible with other manufacturers valves
• Manual external bleed
• Manual Flow control

• Operating pressure: 25-150 PSI
• Minimal flow: 5 GPM
• Rated to 150 PSI maximum working pressure
• Optimal operating pressure for sprinkler systems is 30-90 PSI

• Solenoid: 24VAC/60Hz/50Hz
• Inrush current:0.59 Amps (14.2 VA)
• Holding Current: 0.33 Amps (7.9 VA)
• 22" lead wires
