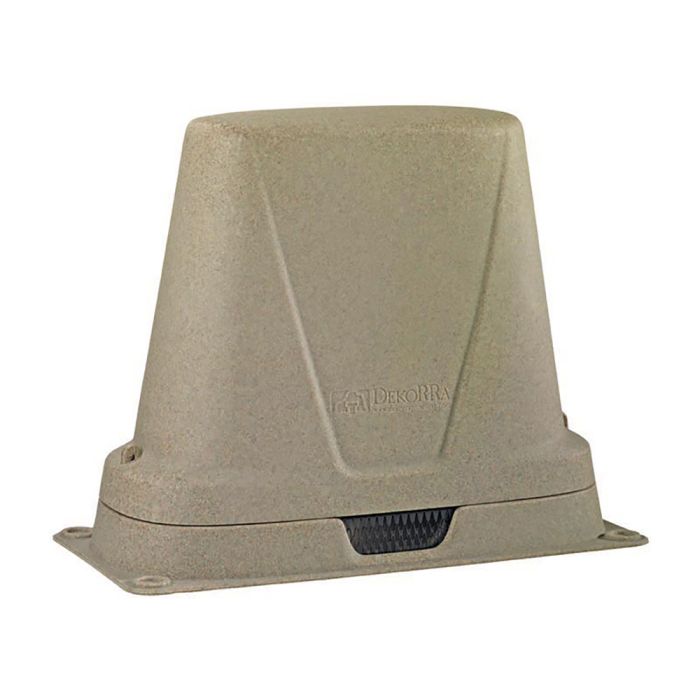

Dekorra 301 Tan Freeze Protection Backflow Enclosure | 301-BG-C1

• Enclosure Type: Freeze Protection
• Dimensions: 34 in. x 16.5 in. x 26.5 in.
• Color: Tan

Features & Benefits

Our insulated and uninsulated enclosures are designed primarily for the backflow market and fit 2" backflow assemblies and pressure vacuum breakers. Available in three configurations:

Dekorra box and base only

Dekorra backflow box and base with an insulated pouch providing R-13 insulation; or

Dekorra backflow box and base with insulation and self-regulating heat source.

Optional Cage View design allows for easy visual inspection and vandal protection. Choose from two natural tones Green Turf or Brown Granite.

• Durable polyethylene construction
• Two-piece design with easy lift-off access
• ASSE approval on all three classifications
• Built-in double-locking hasp
• Insect-resistant ventilation media
• Fasteners (6) are included with each enclosure for anchoring to a concrete pad. Stakes (4) are also included for situations where no concrete pad is required.
• All Dekorra Rock Enclosures are proudly made in the USA and manufactured using recyclable materials.

Product Details

• Class I: Dekorra backflow box and base with insulation and self-regulating heat source.
• Class II: Dekorra backflow box and base with an insulated pouch providing R-13 insulation.
• Class III: Dekorra box and base only.
• Optional Cage View design allows for easy visual inspection and vandal protection. Choose from two natural tones Green Turf or Brown Granite.
• Dimensions: 34"Lx16.5"Wx26.5"H
• Weight: 15 lbs

SSE Class Designations:

• Class I Freeze protection. Dekorra Enclosures Class I and I-V shall have a minimum thermal resistance value of eight and a positive means of heat. Dekorra Backflow enclosures have been designed and constructed to maintain a minimum internal temperature of 40.0F.
• Class II Freeze retardant. Dekorra Enclosures Class II and II-V shall have a minimum thermal resistance value of eight. Dekorra Backflow enclosures have been designed and constructed to be installed in minimum external temperatures of 33.0F.
• Class III Non-freeze protection. Dekorra Enclosures Class III and III-V are designed and constructed to provide system security for components when freezing temperatures are not a consideration.
