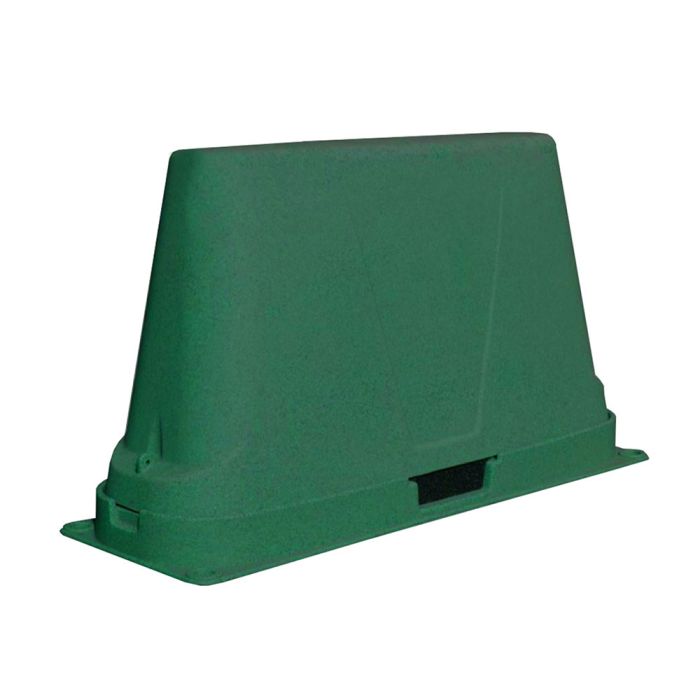

Dekorra 302 Green Freeze Protection Backflow Enclosure
Enclosure Type: Freeze Protection
Dimensions: 48 in. x 17 in. x 27.5 in.
Features & Benefits
Our 302 series insulated and uninsulated enclosures are designed primarily for the backflow market and fit 1-1/2" 2" backflow assemblies and pressure vacuum breakers. Available in three configurations:
C3 - Dekorra box and base only
C2 - Dekorra backflow box and base with an insulated pouch providing R-13 insulation; or
C1 - Dekorra backflow box and base with insulation and self-regulating heat source.
CV - Optional Cage View design (302-BG-CV & 302-GT-CV) allows for easy visual inspection and vandal protection. Choose from two natural tones Green Turf or Brown Granite.
Durable polyethylene construction
Two-piece design with easy lift-off access
ASSE approval on all three classifications
Built-in double-locking hasp
Insect-resistant ventilation media
Fasteners (6) are included with each enclosure for anchoring to a concrete pad. Stakes (4) are also included for situations where no concrete pad is required.
All Dekorra Rock Enclosures are proudly made in the USA and manufactured using recyclable materials.
302-GT-C1: Class I: Dekorra backflow box and base with insulation and self-regulating heat source.
Dekorra Backflow Enclosures incorporate features to provide for positive drainage, security, and accessibility for monitoring, testing, repairing and replacing components. The enclosure provides freeze protection, freeze retardant or non-freeze protection of the components inside.
Dimensions: 48"L x 17"W x 27.5"H
Weight: 25 lbs
Green Turf finish
302-GT-C1: Class I Freeze protection. Dekorra Enclosures Class I and I-V shall have a minimum thermal resistance value of eight and a positive means of heat. Dekorra Backflow enclosures have been designed and constructed to maintain a minimum internal temperature of 40.0F.
