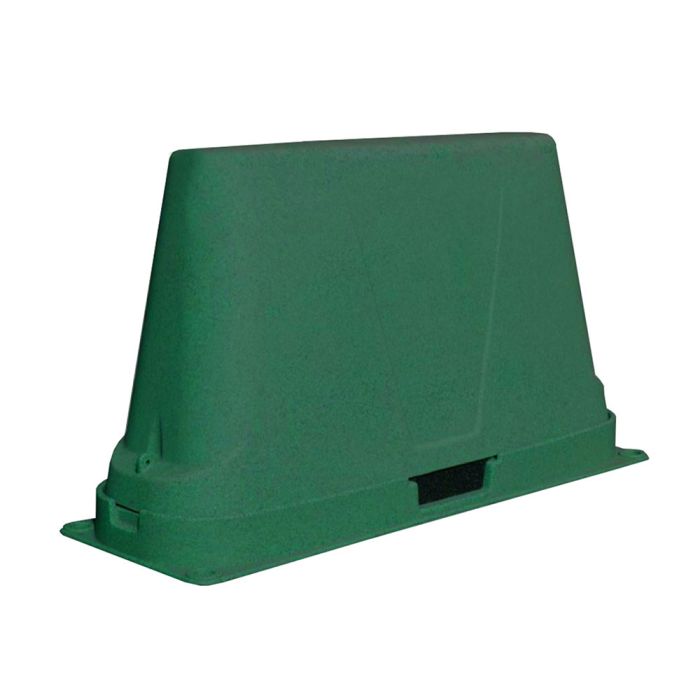

Dekorra 302 Green Freeze Retardant Backflow Enclosure | 302-GT-C2

• Enclosure Type: Freeze Retardant
• Dimensions: 48 in. x 17 in. x 27.5 in.
• Color: Green

Features & Benefits

Our 302 series insulated and uninsulated enclosures are designed primarily for the backflow market and fit 1-1/2" 2" backflow assemblies and pressure vacuum breakers. Available in three configurations:

1. C3 - Dekorra box and base only
2. C2 - Dekorra backflow box and base with an insulated pouch providing R-13 insulation; or
3. C1 - Dekorra backflow box and base with insulation and self-regulating heat source.
4. CV - Optional Cage View design (302-BG-CV & 302-GT-CV) allows for easy visual inspection and vandal protection. Choose from two natural tones Green Turf or Brown Granite.

• Dekorra Backflow Enclosures incorporate features to provide for positive drainage, security, and accessibility for monitoring, testing, repairing and replacing components.
• The enclosure provides freeze protection, freeze retardant or non-freeze protection of the components inside.

Product Details

• Dimensions: 48"L x 17"W x 27.5"H
• Weight: 25 lbs
• Green Turf finish
• 302-GT-C2: Class II Freeze retardant. Dekorra Enclosures Class II and II-V shall have a minimum thermal resistance value of eight. Dekorra Backflow enclosures have been designed and constructed to be installed in minimum external temperatures of 33.0F.
• Durable polyethylene construction
• Two-piece design with easy lift-off access
• ASSE approval on all three classifications
• Insect-resistant ventilation media

• Built-in double-locking hasp
• Fasteners (6) are included with each enclosure for anchoring to a concrete pad. Stakes (4) are also included for situations where no concrete pad is required.
• All Dekorra Rock Enclosures are proudly made in the USA and manufactured using recyclable materials.
• 302-GT-C2: Class II: Dekorra backflow box and base with an insulated pouch providing R-13 insulation.
