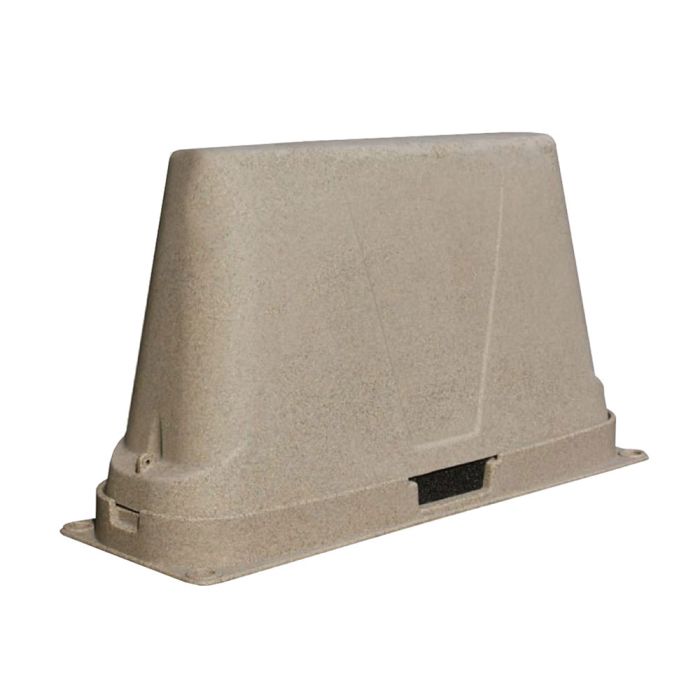

Dekorra 302 Tan Non-Insulated Backflow Enclosure | 302-BG-C3

Out of stock
SKU
302-BG-C3
Free Shipping on Orders over $149
Sales Price $316.92 Our Price $543.29 You save 42%

Note: Item does not qualify for Priority Processing. Please anticipate a delay in shipment.



DEKORRA 302 SERIES BACKFLOW ENCLOSURES:

Our 302 series insulated and uninsulated enclosures are designed primarily for the backflow market and fit 1-1/2"?2" backflow assemblies and pressure vacuum breakers. Available in three configurations: 1) C3 - Dekorra box and base only; 2) C2 - Dekorra backflow box and base with an insulated pouch providing R-13 insulation; or 3) C1 - Dekorra backflow box and base with insulation and self-regulating heat source. 4) CV - Optional Cage View? design (302-BG-CV & 302-GT-CV) allows for easy visual inspection and vandal protection. Choose from two natural tones?Green Turf or Brown Granite.

Specifications
  • Dekorra Backflow Enclosures incorporate features to provide for positive drainage, security, and accessibility for monitoring, testing, repairing and replacing components. The enclosure provides freeze protection, freeze retardant or non-freeze protection of the components inside.
  • Dimensions: 48"L x 17"W x 27.5"H
  • Weight: 25 lbs
  • 302-BG-C3: Class III ? Non-freeze protection. Dekorra Enclosures Class III and III-V are designed and constructed to provide system security for components when freezing temperatures are not a consideration.

Dekorra Model 302 Backflow Enclosures:

Features & Benefits
  • Durable polyethylene construction
  • Two-piece design with easy lift-off access
  • ASSE approval on all three classifications
  • Built-in double-locking hasp
  • Insect-resistant ventilation media
  • Fasteners (6) are included with each enclosure for anchoring to a concrete pad. Stakes (4) are also included for situations where no concrete pad is required.
  • All Dekorra Rock Enclosures are proudly made in the USA and manufactured using recyclable materials.
  • 302-BG-C3: Class III: Dekorra box and base only.
Model 302 Dimensions
More Information
Brand Dekorra
Enclosure Type Non-Insulated
Dimensions 48 in. x 17 in. x 27.5 in.
Freeze Protection Class 3
Minimum External Temperature Minimum External Temperature
Purpose Or Function Backflow Enclosure
Warranty Limited Lifetime
Color Tan
Specifications (648.80 kB)
