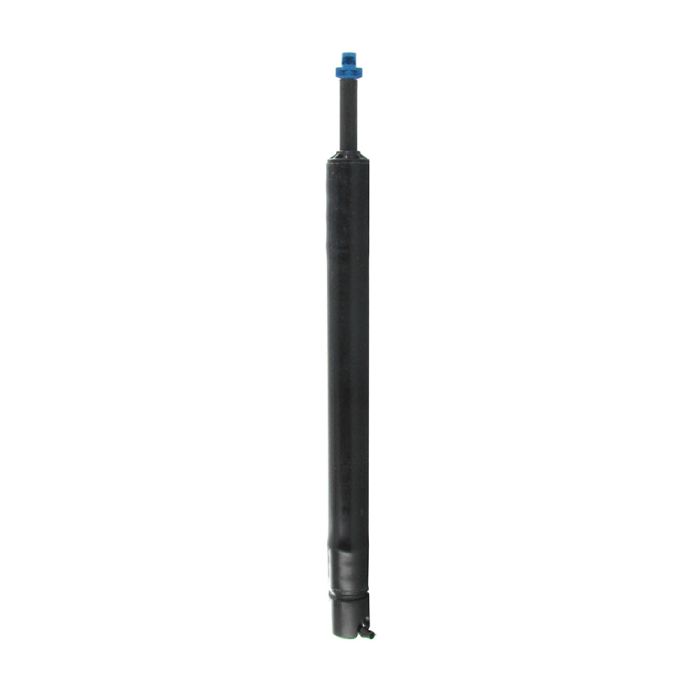

DIG 0.15 - 0.63 GPH 90 Micro Pop-Up 1/4 in. x 8 in. | MP-804

DIG MP-804 - 8" POP-UP MICRO SPRAYER WITH 90 DEGREE NOZZLE:

The MP series pop-up micro sprayers are designed to provide solutions where lowpressure and low flow-rate nozzles are required. Pop-ups are helpful whereconventional sprinkler systems or drip irrigation would not be practical. The MPseries utilizes double seals to ensure reliable operation and long-termperformance.

Features and Benefits

• Unique design incorporates a pressure activated, low friction, upper stemseal and a second stage piston seal to ensure positive sealing
• Quarter circle spray nozzle
• 8" pop-up length with 1/4" (4 mm) barbed elbow
• Second stage piston seal ensures sealing
• Can be used with all sizes polyethylene tubing using the 1/4" barbed elbow option
• Color-coded spray nozzles for easy identification
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

Specifications

• Flow Rate: .15-.63 GPM
• Operating Pressure: 15-30 PSI
• Nominal Operating Pressure: 30 PSI
• Wetting Diameter: up to 5'
• Precipitation Rate: .30-1.26 inch/h
• Inlet Size: 1/4" barbed side inlet
• Filter Requirement: 120 mesh minimum
