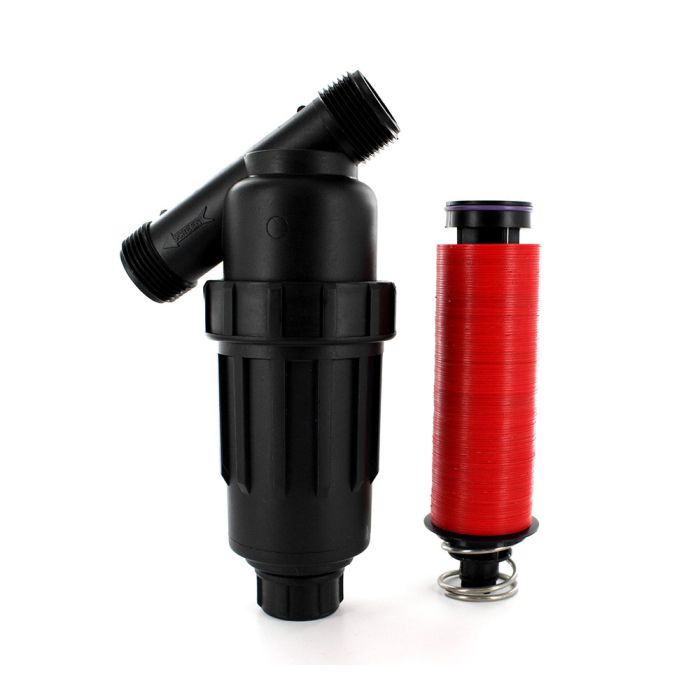

DIG 120 Mesh Disc Filter 1 in. | P31-120D

• Size: 1 in.
• Max PSI: 120
• Flow Capacity: Up to 18 GPM

Features & Benefits

Designed to be used with disc elements for greater operation efficiency. Series P31 filters provide a reliable, low-maintenance solution for the growing demands of any low-volume irrigation application.

• sediments accumulate on the outer face of the stacked discs, allowing clean water to flow through the stacked discs out of the middle of the filter
• Disc elements provide in-depth filtration to retain organic matter
• Discs have excellent resistance to most common chemicals
• Easy maintenance; the discs can be extracted for easy cleaning
• Interchangeable disc and stainless steel screen elements provide a wide range of filtration degrees
• Filter inlet position changes with disc or screen

Product Details

• Operating Pressure: up to 120 PSI
• Temperature Range: up to 130 degrees Fahrenheit
• 3/4" and 1" MNPT inlet and outlet

• Filter Materials

  • Housing: Polypropylene
  • O Ring: EPDM

DIG -Mesh Disc Replacements for Filter Models P30 and P31

• Replacement Disc - 80 Mesh (YELLOW)
• Replacement Disc - 120 Mesh (RED)
• Replacement Disc - 150 Mesh (BLACK

DIG 3/4" MNPT XL FILTERS:

• DIG 3/4" MNPT XL FILTER with 80 Mesh Disc (YELLOW)
• DIG 3/4" MNPT XL FILTERwith 120 Mesh Disc (RED)
• DIG 3/4" MNPT XL FILTERwith 150 Mesh Disc (BLACK)

DIG - P31 - 1" MNPT XL FILTERS:

• DIG 1" MNPT XL FILTER with 80 Mesh Disc (YELLOW)
• DIG 1" MNPT XL FILTER with 120 Mesh Disc (RED)
• DIG 1" MNPT XL FILTER with 150 Mesh Disc (BLACK)
