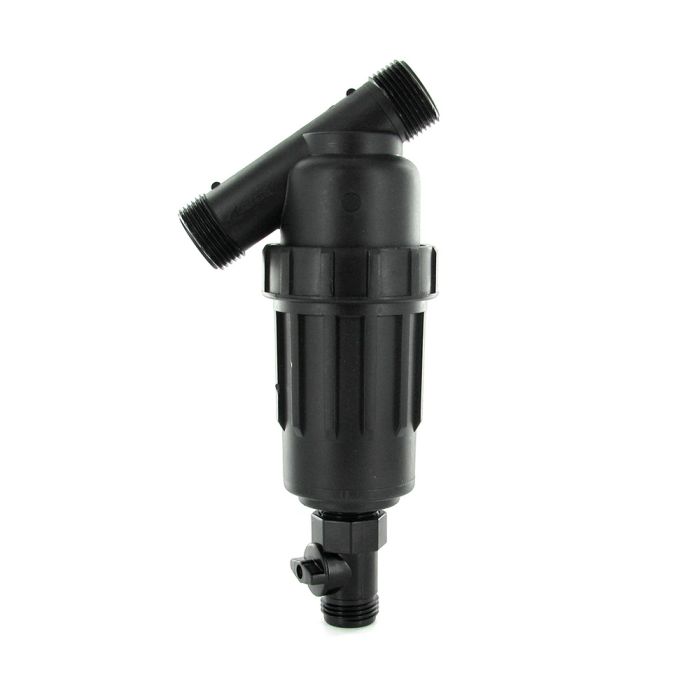

DIG 120 Mesh Flush Valve Stainless Steel Screen Filter 1 in. | P19-120

• Max Temperature: 130°F
• Flow Capacity: up to 80 GPM
• Max PSI: 120

Features & Benefits

Used for residential, commercial, and nursery applications. Simple and easy to operate, the filters provide a quick solution for a wide range of irrigation applications.

• Low friction loss
• Screens have excellent resistance to most common chemicals
• Color-coded replacement screens
• Includes flush cap
• Easy maintenance: screen can be extracted from the filter for easy cleaning
• Non-corrosive materials
• 1-1/2" long and 2" filter screens are interchangeable with a disc cartridge

Product Details

• Acids:
  • Very good resistance depending on concentration and temperature.
  • Excellent resistance to most mineral acids
• Alkali: Limited resistance depending on concentration and temperature
• Excellent resistance to low concentrated lyes. Not recommended for use in highly concentrated lyes
• Housing: Polypropylene
• O-ring: EPDM
• Pressure Testing Port: Polypropylene
• Pressure Testing Seals: Natural Rubber BR
• Operating Pressure: Up to 120 PSI (8.4 BAR)
• Temperature Range: Up to 130°F (54°C)
• 1" MNPT x 1" MNPT
• 120 mesh stainless steel screen
