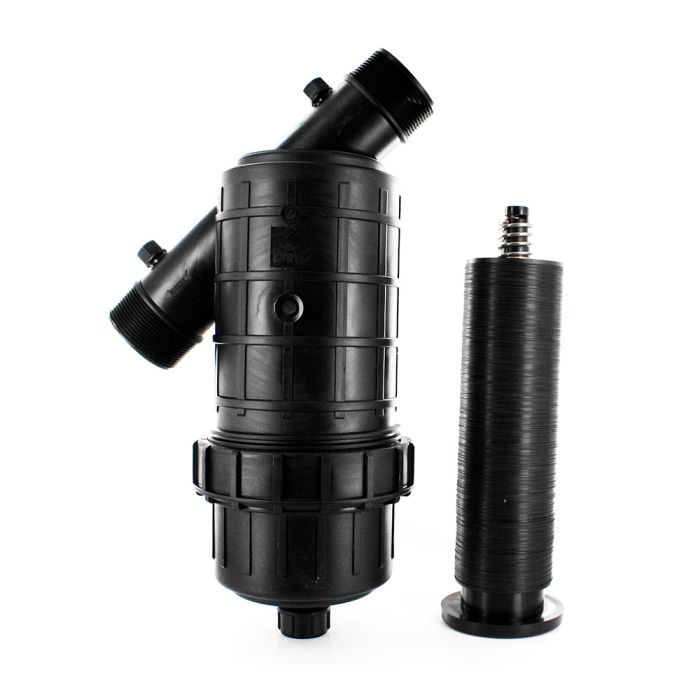

DIG 150 Mesh Disc Screen Filter 2 in. | P80-150D

• Size: 2 in.
• Connection: MNPT
• Max PSI: 120

Features & Benefits

• The P80 filters are compact and cost-effective disc filters with outstanding performance in a wide variety of situations and irrigation conditions.
• sediments accumulate on the outer face of the stacked discs, allowing clean water to flow through the stacked discs out of the middle of the filter
• Disc elements provide in-depth filtration to retain organic matter
• Hydraulic pressure during the filter process causes fastening of the disc and allows for efficient filtering
• Discs have excellent resistance to most common chemicals
• Easy maintenance; the discs can be extracted for easy cleaning
• Interchangeable disc and stainless steel screen elements provide a wide range of filtration degrees

Product Details

• Operating Pressure: up to 120 PSI
• Temperature Range: up to 130 degrees Fahrenheit
• MNPT inlet and outlet

Filter Materials

• Housing: Polypropylene
• O Ring: EPDM
• Pressure Testing Ports: Polypropylene
• Pressure Testing Seals: Natural Rubber BR

Disc Materials

• Grooved Discs: Polypropylene
• Disc Cylinder Assembly: PBT
• Tightening Spring: Stainless Steel 304

DIG - P75 and P80 FILTERS

• DIG P75-080DL 1 1/2" MNPT FILTER WITH 80 MESH DISC (YELLOW)
• DIG P75-150DL 1 1/2" MNPT FILTER WITH 150 MESH DISC (BLACK)
• DIG P80-080D 2" MNPT FILTER WITH 80 MESH DISC (YELLOW)
• DIG P80-150D 2" MNPT FILTER WITH 150 MESH DISC (BLACK)

DIG - Replacement Mesh Discs

• DIG 17-041D 80 MESH DISC REPLACEMENT FOR 1 1/2" FILTERS
• DIG 17-043D 150 MESH DISC REPLACEMENT FOR 1 1/2" FILTERS
