DIG 155 Mesh Flush Cap Polyester Screen Filter 1 in. | P16-155

In stock
SKU
P16-155
Free Shipping on Orders over $149
Sales Price $9.45 Our Price $13.88 You save 32%

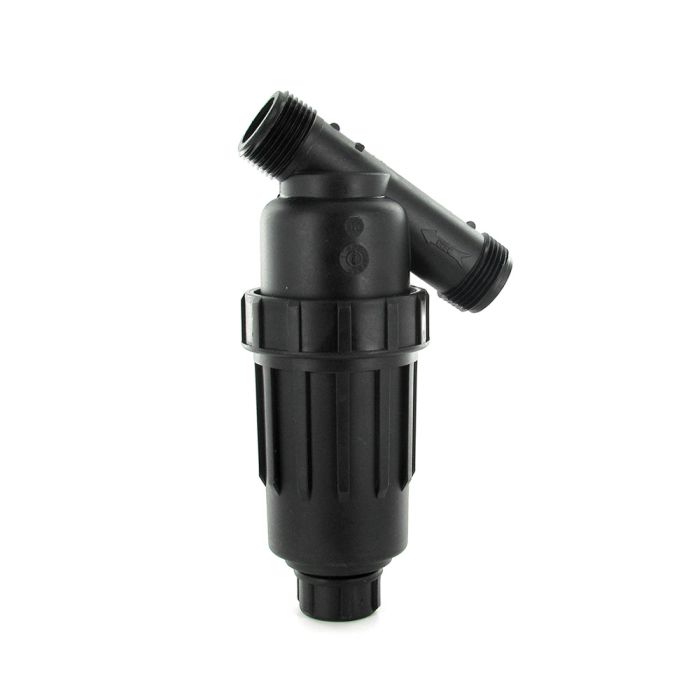

DIG 155 Mesh Flush Cap Polyester Screen Filter 1 in.

  • Size: 1 in.
  • Connection: MNPT
  • Flow Capacity: Up to 18 GPM

Features & Benefits

  • Used for residential and commercial applications. Simple and easy to operate, the filters provide reliable, low-maintenance filtration for trouble-free operation.
  • Low friction loss
  • Screens have excellent resistance to most common chemicals
  • Color-coded replacement screens
  • Includes flush cap
  • Easy maintenance: screen can be extracted from the filter for easy cleaning
  • Non-corrosive materials
  • Interchangeable screen and disc elements with a wide range of filtration degrees

Product Details

  • Operating Pressure: Up to 120 PSI (8.4 BAR)
  • Temperature Range: Up to 130 F (54 C)
  • 1" MNPT x 1" MNPT
  • 155 mesh polyester screen

Materials

  • Housing: Polypropylene
  • O-ring: EPDM

Chemical Resistance

  • Acids:
    • Very good resistance depending on concentration and temperature.
    • Excellent resistance to most mineral acids
  • Alkali: Limited resistance depending on concentration and temperature
  • Excellent resistance to low concentrated lyes. Not recommended for use in highly concentrated lyes
More Information
Brand DIG
Max Temperature (°F) up to 130
Flow Capacity up to 18 GPM
Max PSI 120
Inlet Connection 1 in. MNPT
Outlet Connection 1 in. MNPT
Warranty 3 Years
Specifications (178.15 kB)
