DIG 155 Mesh Flush Cap Stainless Steel Screen Filter 2 in. | P80-155

In stock
SKU
P80-155
Free Shipping on Orders over $149
Sales Price $90.25 Our Price $133.22 You save 32%

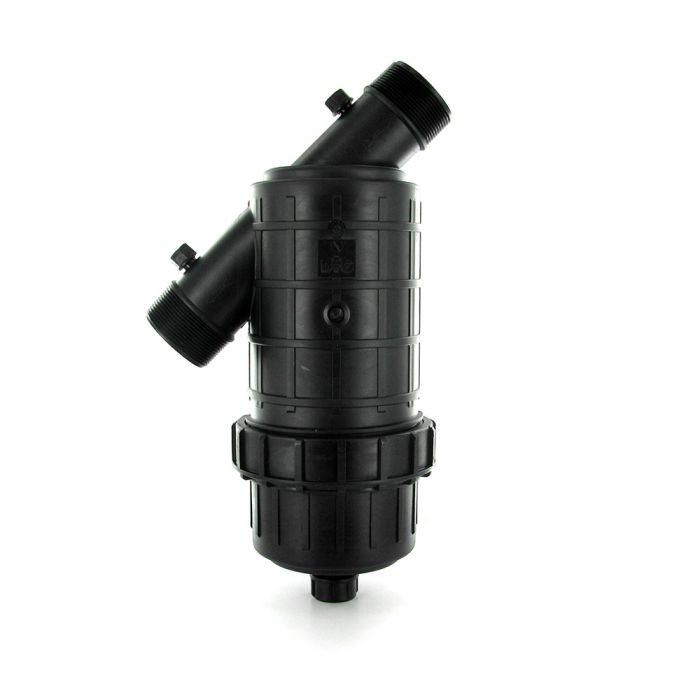

DIG 155 Mesh Flush Cap Stainless Steel Screen Filter 2 in.

  • Max Temperature: 130°F
  • Flow Capacity: up to 80 GPM
  • Max PSI: 120

Features & Benefits

Used for residential, commercial, and nursery applications. Simple and easy to operate, the filters provide a quick solution for a wide range of irrigation applications.

  • Low friction loss
  • Screens have excellent resistance to most common chemicals
  • Color-coded replacement screens
  • Includes flush cap
  • Easy maintenance: screen can be extracted from the filter for easy cleaning
  • Non-corrosive materials
  • 1-1/2" long and 2" filter screens are interchangeable with a disc cartridge

Product Details

  • Acids:
    • Very good resistance depending on concentration and temperature.
    • Excellent resistance to most mineral acids
  • Alkali: Limited resistance depending on concentration and temperature
  • Excellent resistance to low concentrated lyes. Not recommended for use in highly concentrated lyes
  • Housing: Polypropylene
  • O-ring: EPDM
  • Pressure Testing Port: Polypropylene
  • Pressure Testing Seals: Natural Rubber BR
  • Operating Pressure: Up to 120 PSI (8.4 BAR)
  • Temperature Range: Up to 130°F (54°C)
  • 2" MNPT x 2" MNPT
  • 155 mesh stainless steel screen
More Information
Brand DIG
Max Temperature (°F) up to 130
Flow Capacity up to 80 GPM
Max PSI 120
Inlet Connection 2 in. MNPT
Outlet Connection 2 in. MNPT
Warranty 3 Years
Specifications (328.01 kB)
