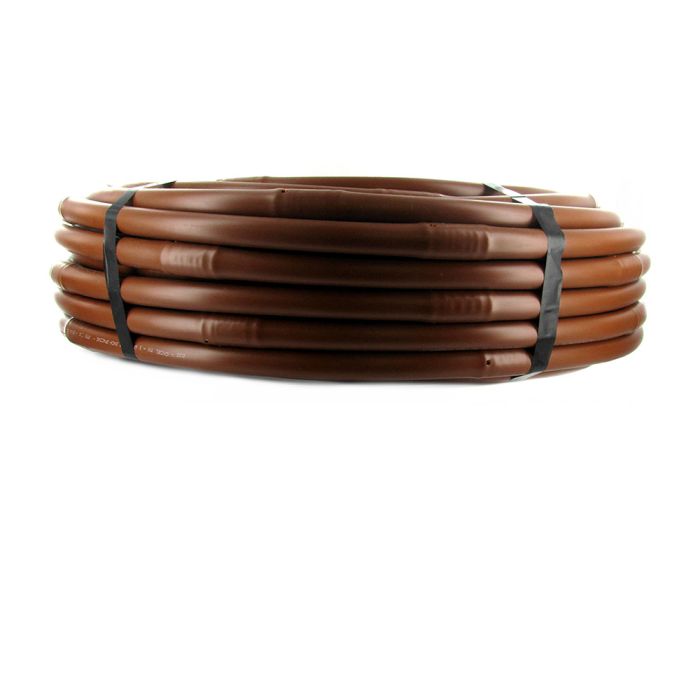

DIG 17 mm Brown Dripline (12 in. Emitter Spacing) (.95 GPH) (100 ft.) | A1-112P

SKU
A1-112P
Sales Price $40.40 Our Price $49.99 You save 19%

DIG 17 mm Brown Drip Line - (12" Emitter Spacing) (.95 GPH) (100')

  • 100 feet
  • 17mm Tubing (.570 ID x .670 OD)
  • 12" Emitter Spacing (.95 GPH)
  • Brown Drip Line
  • Pressure Compensating

Features & Benefits

  • Dual outlet configuration; if one outlet becomes blocked, a second outlet on the opposing side of each drip emitter along the line provides redundancy to the drip emitter performance
  • Can be installed above or below grade
  • Flow-regulated, self-flushing in-line drip emitters deliver equal flow at a wide range of operating pressures
  • Two flow rates to provide maximum flexibility in a variety of applications
  • Flow uniformity regardless of operating pressure and variation along the line
  • Drip emitter and diaphragm are self-contained units that are molded into the interior wall of the tubing
  • Turbulent flow through a large labyrinth water passage helps reduce clogging
  • Emitters are made of three individual sections including a cylindrical plastic housing with a labyrinth water passage, a plastic receptacle and a floating silicon diaphragm
  • Resistant to chemicals and fertilizers commonly used in landscaping
  • Flexible tubing for easy installation
  • Dripline is marked with flow rate, size and date for easy identification
  • Use with DIG's 17 mm barb fittings, .670" OD compression fittings and universal Nut Lock fittings

Product Details

  • Flow rate: 95 GPH (3.6 L/H) color code - white
  • Operating pressure: 12-50 PSI (0.8-3.5 BAR)
  • Color code: brown
  • Materials: Low-density polyethylene resin
  • Sizes: .570" ID x .670" OD (14.5 mm ID x 17 mm OD)
  • Spacing: 12 inches (30 cm)
  • Lengths: 100' coil (30 m)
  • Minimum bending radius: 1" (.3 m)
  • Filter requirement: minimum of 150 mesh

Related Articles & Videos

Articles

Videos

More Information
Brand DIG
Product Type 1/2" On-Surface Dripline For Slopes
Inner Diameter .570 in.
Outer Diameter .670 in.
Purpose Or Function Dripline
Warranty 7 Years
Size 17 mm
Coil Length 100 ft.
Specifications (959.26 kB)
