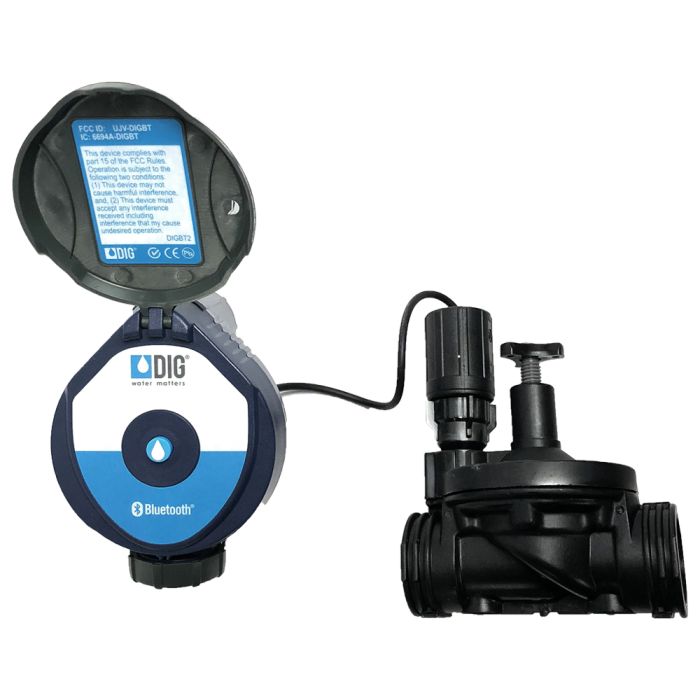

DIG 410BT Bluetooth Battery Operated Controller with 2 in. Valve | 410BT-200

DIG's 410BT-Series Battery Operated Controller features Bluetooth® wireless technology combined with a full-function irrigation controller to provide long-lasting, reliable, and feature-packed irrigation control via your smartphone or tablet. Download the free DIG BTT app to control any number of 410BT controllers through supported Android or iPhone smart devices from up to 50' (15 meters), line of sight.

The 410BT controller's rugged design is ideal for use in residential and commercial applications or where AC power is unavailable. It features a waterproof design (IP 68) and can operate for up to one year on two AA alkaline batteries. The controller includes a single button for manual operation and 3/4" through professional-grade in-line valves with flow control.

Features & Benefits

Programming features via smartphone

• Graphical representation of programming schedule
• Weekly, Even/Odd days of the month, or 1- to 30-day schedules
• Five start times per day
• Program run time from 1 minute up to 11 hours and 59 minutes in 1-minute increments

Controller Setting

• View remaining battery life, connection strength, timer current watering status, and last watered information easily from the app
• System activation feature
• Rain delay option of up to 99 days with an automatic restart for water conservation
• Budgeting by the month of up to 200% in 5% increments
• Up to nine scheduled off dates per year (preventing the controller from operating on those specific days)
• Up to 12 months of irrigation run time history information in the palm of your hand
• Customization through a smartphone to name the controller
• Customization through the smartphone Assigning a picture to a controller using the camera
• Password protection capabilities

Manual run

• Manual run with customization duration

Controller Scanning Screen

• View previous connection information of all timers previously connected to, if you have more than one
• Contact information to DIG

Product Details

• Type: DC (IP68)
• Connection and program mode: Android or iPhone smartphone, Bluetooth
• Controller power input: constant 11-volt
• Operation interface: one button for reset and manual run
• Power source: two AA alkaline batteries (not included)
• Solenoid with an enclosed plunger: two-way magnetic latching, normally closed, 7-12 Volt DC with two wires
• Body: water proof, IP68
• Solenoid wire: 8" (20 cm)
• Operating pressure: 10 to 150 PSI (.7 to 10.5 bar)
• Flow range: .1 to 160 GPM (.23 to 36 m3h)
• Temperature range: 38 - 130 degree F (3 - 54 degree C)
• Inlet and outlet: female pipe thread (FNPT) or British standard thread (BSP)
• Valve size: 3/4", 1", 1-1/2" and 2" FNPT heavy duty globe valves with flow control
• Materials:
  • Controller housing: high-impact plastic
  • Inline valve and solenoid: glass-reinforced nylon
