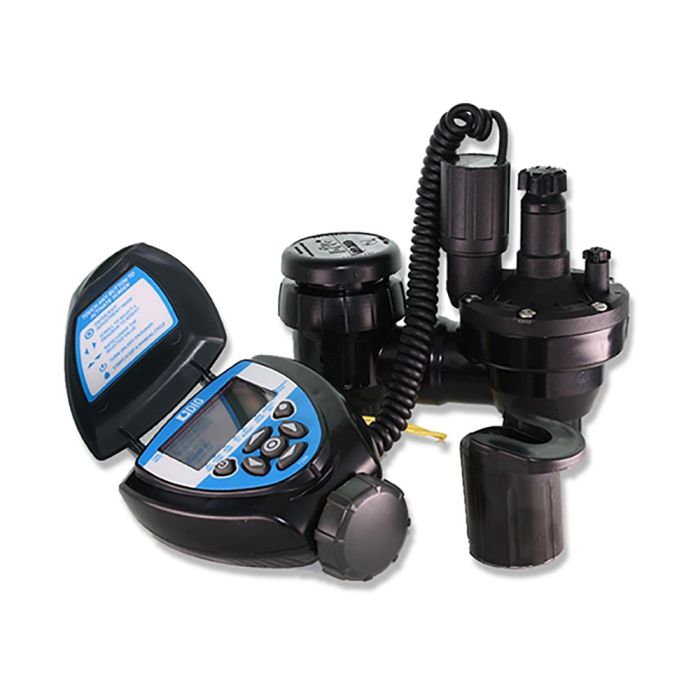

DIG 710A Battery Operated Controller with 3/4 in. Anti-Siphon Valve | 710A-075-ASV

• Zones: 1
• Valve Size: 3/4 in.
• Expandability: Fixed

Features & Benefits

Completely waterproof and able to operate in harsh environments, the easy to use 710A series single station battery operated controllers with two wire DC latching solenoid can be installed above ground or below grade on a wide range of valves. Powered by two AA alkaline batteries that last up to three years, the 710A series controllers offer installation flexibility and simple programming for easy operation and maintenance, including seven buttons with a large, easy-to-read LCD screen and icon-based programming with five start times per day in weekly or cyclical mode. Additional features include monthly budget, rain delay of up to 99 days with automatic restart, 20 preset smart programs utilizing historical ET, and monthly and daily programming restriction options to comply with city and municipal codes.

Distinguished among the 710A features are twenty Simple Smart? programs based on monthly historical Evapotranspiration (ET) for spray heads and drip irrigation, with an editing feature that can be used as part of the controller programming. Combining one of the hostorical Evapotranspiration preset programs and a rain sensor can help seasonally adjust or prevent unnecessary watering

• Powered by two AA alkaline batteries with a 60 second safe period when replacing batteries that prevents the settings from being lost
• Watering flexibility with a selection of watering frequencies including weekly, odd, even, and cyclical with five start times per day
• see more
• Seven buttons with integrated high resolution screen
• Simple, icon based intuitive programming and EasyFlow? navigation
• Simple Smart? historical ET feature for spray heads and drip irrigation automatically adjusts irrigation schedules monthly
• Low battery indicator
• On activation, the controller displays if irrigation is set to water for the day and if any of the additional programming features are active
• Daily and monthly programming restriction options to comply with cities and municipals watering restrictions
• After fifteen minutes the controller screen turns off automatically to conserve energy
• Semi-automatic and manual operation with timed countdown to off
• Program On/Off button allows the user to turn off the controller and reactivate it as desired
• Retractable coiled cord
• Brackets for solenoid and wall mounting options are included
• Utilizes RoHS compliant components
• Reset option allows erasing of all programs to default settings except time, day, and date
• Non-volatile memory holds programs indefinitely without batteries except date and time
• Completely waterproof (IP68)
• Rain sensor connection included
• Can be mounted on a range of actuators and solenoid valves
• Captured solenoid plunger and spring for easy maintenance
• Easily retrofits to most manufacturers? valves with one of our seven adapters
• Three year warranty

Product Details

• Type: DC
• Body: IP68
• Power source: two AA alkaline batteries (not included)
• Power input: constant 11 volt
• Program mode: Seven keypad buttons with integrated liquid crystal display
• Temperature range: 38?F to +130?F (3?C to +54?C)
• Solenoid: 7-12 VDC, two-way latching, normally closed
• Solenoid control orifice: .065 (1.65 mm)
• Encapsulated solenoid thread: 11/16 in.-12 UN male thread
• Retractable wire: 8.1 inch (coiled length when extended, approximately 36 in.)
• Sensor connection: normally closed 6 inch (15 cm) yellow wire ( 16 AWG)
• Adapters included to convert Rain Bird, Hunter, and Toro valves (model 710A-000)
• Mounting options: solenoid or valve box mounting
• Valve type: actuators, anti-siphon or globe valves (NPT or BSP)

 Materials

• Housing: high impact plastic
• Solenoid housing: glass reinforced nylon
• Plunger & spacer: 430F stainless steel
• Plunger rubber cap: EPDM
• O-ring: Buna-N
• RoHS

Programming Options

• Custom programming schedules with a weekly calendar, odd days, even days, intervals from one to thirty (1-30) days or 1 to 12 hours utilizing yearly calendar with leap year
• Five start times per day in normal programming and one stat time per day in intervals of 1 to 12 hours
• Durations up to 5 hours and 59 minutes in one-minute increments
• 20 preset historical ET programs available for 10 climate zones, with 10 for drip irrigation and 10 for spray heads, to use with any irrigation setup and including the option to review the new calculated duration
• Monthly seasonal adjustment through the seasons with option to reduce the program duration setting to 0 or to increase it up to 200% in 5% increments without modifying the controller's program duration; also can be used to fine-tune the preset ET program for each month
• Irrigation suspension for up to 99 days with auto-restart; resumes irrigation automatically
• Program Off button allows the user to turn off the controller and reactivate it as desired
• Manual On/Off button with semi-automatic feature utilizing the program runtime and shows the time left to run with quick override
• Daily and monthly programming restriction feature allows controller to bypass irrigation schedules. Can be used to comply with city and municipal watering restrictions
