DIG 80 Mesh Disc Replacement Filter 1-1/2 in. | 17-041D

In stock
SKU
17-041D
Free Shipping on Orders over $149
Sales Price $61.95 Our Price $90.74 You save 32%

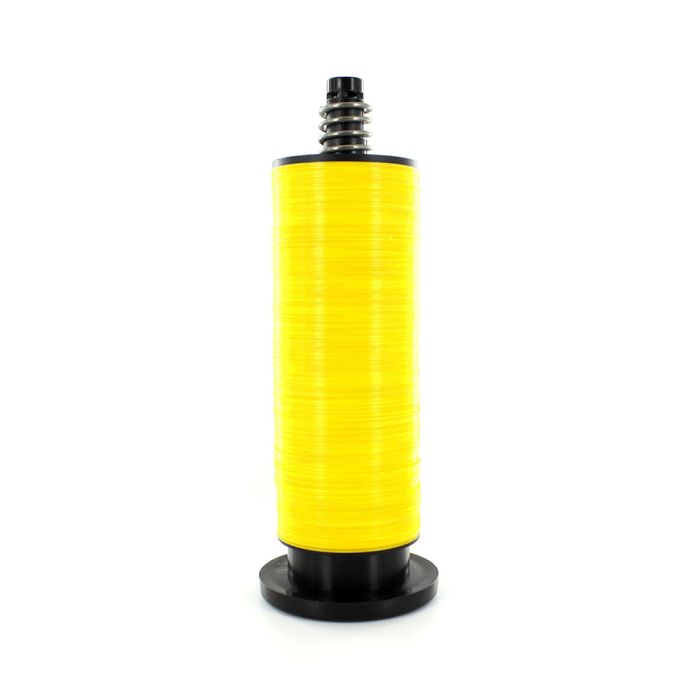

DIG 80 Mesh Disc Replacement Filter

  • Max PSI: 120
  • Flow Capacity: Up to 60 GPM
  • Fits Size 1.5 in. P75-080DL Filters

Features & Benefits

  • Designed to be used with the 1 1/2" P75-080DL filters. The P75 filters provide a reliable, low-maintenance solution for the growing demands of any low-volume irrigation application
  • Sediments accumulate on the outer face of the stacked discs, allowing clean water to flow through the stacked discs out of the middle of the filter
  • Disc elements provide in-depth filtration to retain organic matter
  • Hydraulic pressure during the filter process causes fastening of the disc and allows for efficient filtering
  • Discs have excellent resistance to most common chemicals
  • Easy maintenance; the discs can be extracted for easy cleaning
  • Interchangeable disc and stainless steel screen elements provide a wide range of filtration degrees

Product Details

  • Operating Pressure: up to 120 PSI
  • Temperature Range: up to 130 degrees Fahrenheit
  • MNPT inlet and outlet

Filter Materials:

  • Housing: Polypropylene
  • O Ring: EPDM
  • Pressure Testing Ports: Polypropylene
  • Pressure Testing Seals: Natural Rubber BR

Disc Materials

  • Grooved Discs: Polypropylene
  • Disc Cylinder Assembly: PBT
  • Tightening Spring: Stainless Steel 304

DIG - P75 and P80 FILTERS:

  • DIG P75-080DL 1 1/2" MNPT FILTER WITH 80 MESH DISC (YELLOW)
  • DIG P75-150DL 1 1/2" MNPT FILTER WITH 150 MESH DISC (BLACK)
  • DIG P80-080D 2" MNPT FILTER WITH 80 MESH DISC (YELLOW)
  • DIG P80-150D 2" MNPT FILTER WITH 150 MESH DISC (BLACK)

DIG - Replacement Mesh Discs:

  • DIG 17-041D 80 MESH DISC REPLACEMENT FOR 1 1/2" FILTERS
  • DIG 17-043D 150 MESH DISC REPLACEMENT FOR 1 1/2" FILTERS
More Information
Brand DIG
Max Temperature (°F) up to 130
Flow Capacity up to 60 GPM
Max PSI 120
Warranty 3 Years
Specifications (328.01 kB)
