DIG 90 Adjustable Jet Spray | MA-109

SKU

MA-109

Sales Price $2.10 Our Price $3.56 You save 41%

Overview

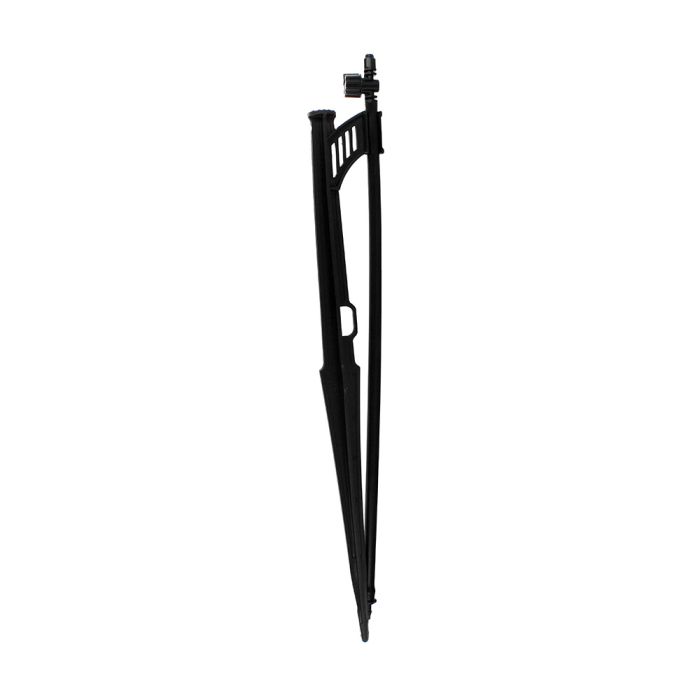

DIG 90 Adjustable Jet Spray

Length: 12 in.
Spray Pattern: 90 Degrees
Operating PSI: 10 - 30 PSI

Features & Benefits

Sprays 90,180 and 360 degrees on 12" spike with coverage of up to a 20' radius and adjustable flow rates from 0 to 30 GPH. The ideal spacing is 5' to 8' between the spray jets.

The mini valve can be adjusted to reduce flow and diameter
Available on 10/32 thread
Flow Rates: 0-31 GPH
Operating Pressure: 10-30PSI
Wetting Diameter: up to 25'
Pattern: 90, 180, and 360 degrees
Filter Requirement: 80 Mesh

Model	Description	Color
MA-109	90 degrees on spike assembly	Black
MA-118	180 degrees on spike assembly	Black
MA-136	360 degrees on spike assembly	Black

Product Details

Operating pressure: 15-30 PSI (1-2 BAR)
Flow rate: 26.1 GPH @ 25 PSI
Wetting diameter: up to 23′ (7 m)
Pattern: 360°, 180°, and 90°
Trajectory: approximately 40°
Filter requirement: minimum of 120 mesh

Flow Rate vs Pressure

		360°	180°	90°
Pressure (PSI)	Flow (GPH)	Diameter (FT)	Radius (FT)	Radius (FT)
10	0-16.7	0-17	0-7.2	0-5.7
15	0-20.3	0-18	0-8.2	0-7.0
20	0-23.4	0-20	0-9.1	0-8.1
25	0-26.1 0	0-22	0-9.9	1 0-8.1
30	0-28.6	0-23	0-10.6	0-9.9
