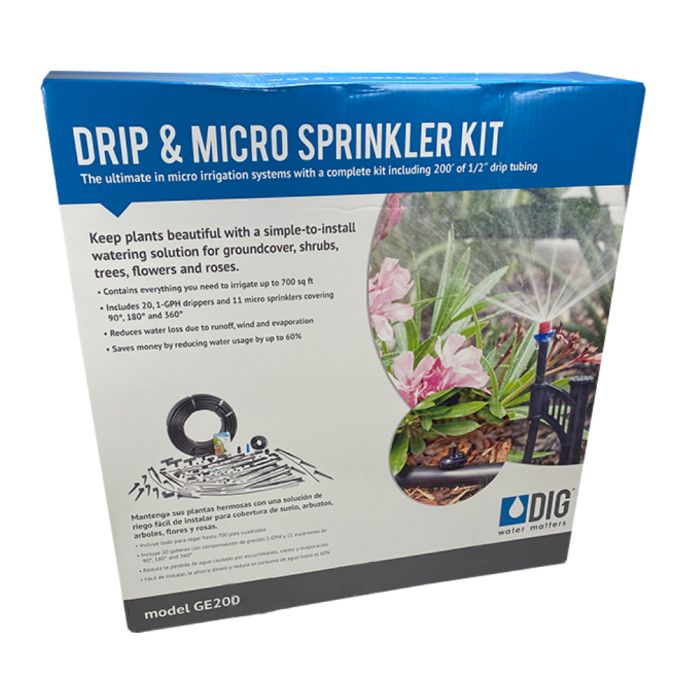

DIG Drip and Micro Sprinkler Kit | GE200

In stock
SKU
GE200
Free Shipping on Orders over $149
Sales Price $55.55 Our Price $92.79 You save 40%

DIG Drip and Micro Sprinkler Kit

  • Size: 3/4 in.
  • Operating PSI: 25 - 30 PSI
  • Purpose: Gardens, Roses, Shrubs, Groundcovers, Flower Beds, Trees

Features & Benefits

The GE200 Drip & Micro Sprinkler Kit is one of DIG’s bestselling drip irrigation kits, suitable for residential gardens planted with roses, shrubs, groundcovers, flowerbeds and trees. The kit can cover up to 700 sq. ft and can be expanded to cover more than 1000 sq. ft using additional drip tubing, micro sprayers and drip emitters. This kit contains all the parts needed to start a drip irrigation system from a faucet or a garden hose. The kit includes a 3/4″ backflow preventer, 3/4″ 25 PSI pressure regulator, 3/4″ swivel adapter, 200′ of premium 1/2″ drip tubing with .600 ID x .700 OD, 50′ of 1/4″ micro tubing, 11 micro sprayer assemblies with 13″ stakes and micro tubing with barbs, 20 1-GPH PC drip emitters and all the necessary parts needed to complete the installation.

  • Use to water roses, shrubs, groundcovers, flowerbeds and trees; ideal for hillsides
  • Complete kit; covers up to 700 sq ft (can be easily expanded)
  • Contains 11 micro sprayer assemblies, including three 360°, four 180° and four 90° patterns, and 20 1-GPH PC button drip emitters
  • Applies water at a very low application rate reducing surface evaporation from leaves and soil
  • Micro sprayers are useful as water remains in the upper soil layers where the roots are developing
  • Easy to install
  • Provides flexibility in irrigation frequency and low application rate minimizes soil compaction and surface runoff
  • Designed for new and existing landscapes, including difficult terrain such as slopes and oddly shaped areas
  • No special tools or glue are needed
  • Save money by significantly lowering the cost of system components compared to conventional irrigation systems
  • DIG’s drip irrigation products may be exempt from residential and commercial watering restrictions (check with local water provider)

Product Details

  • Maximum incoming pressure: 100 PSI
  • Operating pressure: 25 to 30 PSI (25 PSI preset pressure regulator included)
  • Maximum recommended flow rate: 220 GPH (3.7 GPM)
  • Poly tubing length & size: 200' x 1/2" with .600 ID x .700 OD
  • Micro tubing Length and size: 50' x 1/4"
  • 3/4" FHT x MHT pressure regulator: downstream pressure preset to 25 PSI
  • PC drip emitter flow rate: 1 gallon per hour (GPH)
  • Micro sprayer flow rate: 14 gallons per hour (GPH)
  • Total flow rate for this kit: 174 GPH (2.9 GPM)

Box Contents

QTY  Description QTY Description
1 3/4" FHT x MHT backflow preventer 20 1/4" tubing holder stakes
1 3/4" FHT x MHT pressure regulator 10 1/4" barbed tees
1 swivel adapter with screen 12 1/4" barb connectors
1 200' of 1/2" drip tubing 10 1/2" tubing holder stakes
1 50' of 1/4" micro tubing 4 1/2" tees
3 360° spray jets on threaded barb 1 1/2" coupling
4 180° spray jets on threaded barb 4 1/2" elbows
4 90° spray jets on threaded barb 1 hole punch
20 1 gallon per hour (GPH) PC drip emitters 10 goof plugs
11 13" clip spike assemblies with 24" micro tubing and barbs 4 figure "8" hose ends
1 Instruction manual
More Information
Brand DIG
Max PSI 100 PSI
Operating PSI 25 - 30 PSI
Purpose Gardens, Roses, Shrubs, Groundcovers, Flower Beds, Trees
Tubing Size 1/2", 1/4"
Warranty 3 Years
Size 3/4 in.
Flow Rate 0 - 174 GPH
Connection FHT
Type Drip Irrigation and Micro Sprinkler Kit
