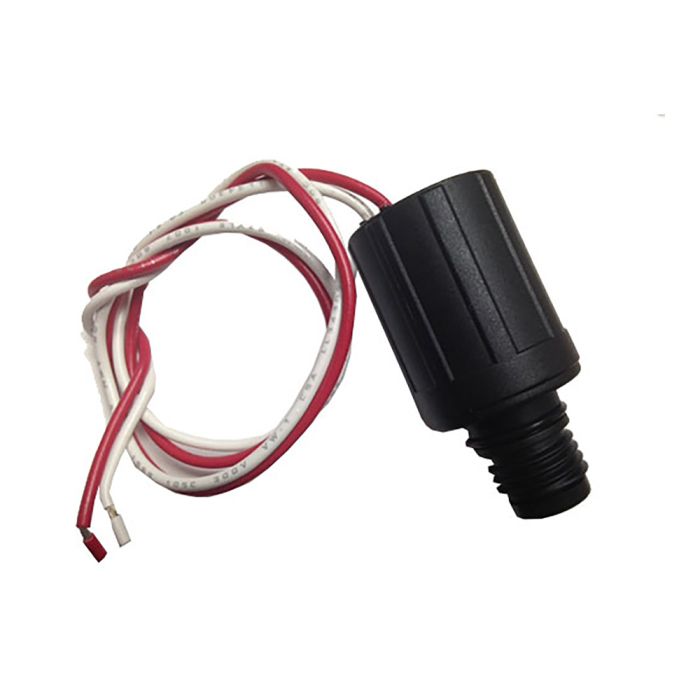

DIG Solenoid w/ Internal Bleed and Manual Override 3/4 in. | S-305DC

In stock
SKU
S-305DC
Free Shipping on Orders over $149
Sales Price $17.05 Our Price $29.95 You save 43%

DIG Solenoid w/ Internal Bleed and Manual Override 3/4 in.

  • Size: 3/4 in.
  • Brand: DIG
  • Type: Solenoid w/ Internal Bleed and Manual Override

Features & Benefits

The Unimax solenoid is a 2-way magnetic latching solenoid designed for use with the LEIT-2 system on various brand name valves using an assortment of threaded adapters. The S-305 can also operate with various 2-wire DC controllers available in the market at a distance of up to 200ft using 14 AMG wire. The S-305 uses a sealed plastic over-molding to prevent water or other contaminants from entering the solenoid housing. The normal actuation of the S-305 is via a bi-directional pulse.

  • For use with LEIT-2 ET controllers only
  • Designed to work with single- and multi-station battery and solar-powered controllers
  • Adaptable to a wide range of valves using our valve adapters
  • Potted design for sealed construction
  • Two color-coded wires
  • Captured plunger and spring for reliable operation

Product Details

  • Operating pressure: 10-150 PSI (.7-10.5 BAR)
  • Weight: 4.3 oz (122 g)
  • Temp. range: 38°F to 150°F (3°C to 65°C)
  • Solenoid thread: 11/16″-12 UN
  • Control orifice: .065″ (1.7 mm)
  • Diameter: 1.23″ (3.1 cm)

Materials:

  • Body: glass-reinforced nylon
  • Plunger & Spacer: 430F stainless steel
  • Rubber cap: EPDM
  • O-ring: Buna-N

Electrical Specifications

  • Two-way magnetic latching solenoid
  • Coil operating data:
    • Coil resistance 4.7 +/- 0.3 Ohms, minimum pulse 10 mS duration at 7-12 volts
  • Red + and white – to latch open
  • Red – and white + to latch closed
  • Control orifice: .065″ (1.7 mm)
  • Leads: 18″ (46 cm) AWM 1007 / 1569 16 AWG 300V VW-1- red/white
Model Description
30-921

Solenoid adapter for RAIN BIRD

(DV, DVF, PGA, PEB, GB, EFB-CP, BPE, PESB, ASVF)

30-922

Solenoid adapter for HUNTER

(ASV, HPV, ICV, PGV, SRV, IBV, ASVF)

30-924

Solenoid adapter for IRRITROL

(100, 200B, 205, 217, 700 series, 2400, 2500, 2600 series TORO 220, P220 series GRISWOLS 200, DW)

More Information
Brand DIG
Type Solenoid w/ Internal Bleed and Manual Override
Warranty 3 Years
Specifications (215.87 kB)
