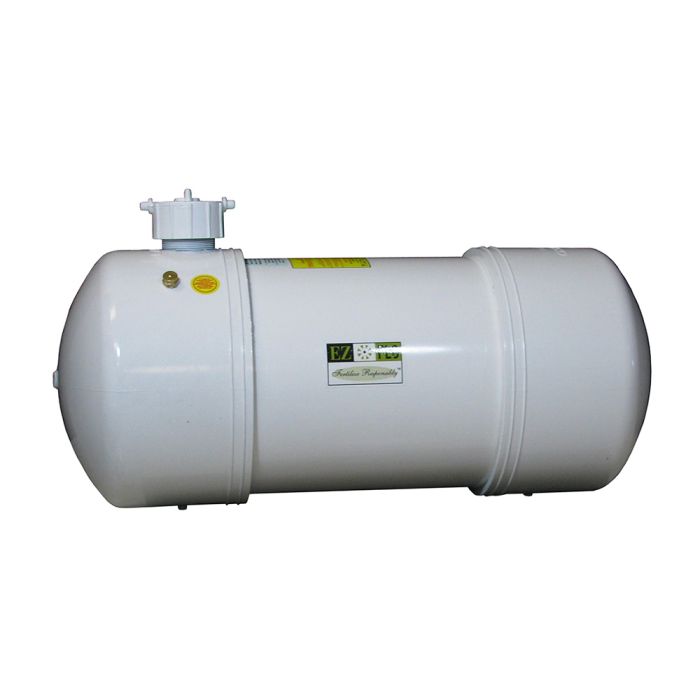

EZ-FLO EZ010-CX

9.4 GALLON TANK
Fertilizer Tank Assembly
(Fertilizer not included)

Kit includes:

- 9.4 Gallon Tank
- Bypass Fitting; Tubing; & Tubing Clamps
- Pressure Relief Valve - Rated 150 PSI
- Two (2) EZ Shutoff Valves

You Will Need

A Coupling Connector; please choose the correct connector for your application when adding this item to your cart.

Then Finally Just Add
Some Fertilizer And
You Are All Done!

EZ-FLO Main Line Units

• Simple yet Precise - EZ-FLO Main Line Systems attach directly to your in-ground sprinkler and/or drip irrigation system. Every time you use your irrigation system; EZ-FLO releases small; precision doses of water-soluble or liquid non-hazardous fertilizers into the water stream.
• Easy to install - EZ-FLO Systems can be installed in minutes. They can be installed underground or hidden under decorative rocks or structures.
• Very Reliable - All models are equipped with shutoff valves for ease of refill and a pressure relief valve that releases and resets when water pressure in the tank exceeds 150 pounds per square inch (10 bars). All premium versions carry a five (5) year manufacturer's warranty.
• Low Cost; Low Maintenance - The EZ-FLO Main Line Systems are an extremely cost-effective way to fertigate your landscape; simply add more fertilizer when needed!

Refill Suggestions
FOR THE BEST RESULTS; PLEASE USE THESE RATIOS:
(EZ-FLO Model Number & Recommended Refill Quantity)

* After adding your mixture to your EZ-FLO Tank; fill and top off the remaining volume with regular water!

* * Other Liquid Fertilizers (Such as FertiGator FertiGro) can be used in all EZ-FLO Main Line Units WITHOUT voiding your EZ-FLO Warranty! FertiGator brand fertilizers are concentrated liquid fertilizers which can be poured DIRECTLY into your EZ-FLO's Tank; NO MIXING NECESSARY... JUST FILL IT UP!

* * * EZ-FLO's Fertilizers are recommended by SprinklerWarehouse.com for their greater potency and lower cost!

EZ-FLO Main Line Systems Feed the Entire Landscape Automatically Every time You Water

EZ-FLO Main Line Systems attach directly to your in-ground sprinkler and/or drip irrigation system. Every time you use your irrigation system; EZ-FLO releases small; precision doses of water soluble or liquid non-hazardous fertilizers into the water stream. One system will feed through both sprinkler and drip irrigation zones without the need to make any adjustments or nozzle changes to compensate for water flow or water pressure.

Main Line Systems have been designed to connect directly to your irrigation system after an approved backflow prevention device. They are designed to withstand constant static water pressure present in your irrigation system. These units are constructed of heavy-walled; UV-Resistant PVC and have no moving parts making them very reliable; dependable and maintenance-free.

EZ-FLO Systems are Easy to Install and Easy to Use

EZ-FLO Systems can be installed in minutes. We recommend that they be installed in an underground valve box but they can also be hidden under decorative rocks or housed in above-ground structures when necessary. The only requirement is that they be installed after an approved backflow prevention device as determined by the local plumbing code. See Backflow Information for more details on what these devices do.

EZ-FLO main line systems are installed after the backflow prevention device and normally before the irrigation zone valves to allow the unit to feed all irrigation zones. A typical installation is shown here:

In this configuration; when an irrigation zone valve is turned on; the EZ-FLO fertigation unit automatically adjusts to pressure and flow and precisely meters out the appropriate fertilizer based on the water volume flowing into that zone.

EZ-FLO main line units can also be installed after the zone valve or directly in front of a single zone valve or multiple zone valves if you want to isolate a zone(s) from the other zone(s). An example is shown to the right and could be for a larger irrigation system that services lots of open turf but the owner wants to focus on their flower beds or in the case of a municipal park; just the baseball field.

Main-line Models and Sizes

EZ-FLO manufactures units in varying tank sizes. The size of the unit represents the approximate capacity of the holding tank for the concentrated fertilizer and come in the following tank sizes:

EZ 001-CX

EZ 003-CX

EZ 005-FX

EZ 010-FX

EZ 010-HC

EZ 020-HC

EZ 030-HC

All models are equipped with shutoff valves for ease of refill and a pressure relief valve that releases and resets when water pressure in the tank exceeds 150 pounds per square inch (10 bars). All premium versions carry a five (5) year manufacturer's warranty.

Size the Model to your Landscape

• What size model you choose to order is dependent on a few factors.

• What is the composition of the landscape materials?

Turf uses more irrigation water than a dense ground cover or shrubs with deeper root masses.

• What products are you interested in applying through your irrigation system?

Some products have higher application rates than others.

• How often do you want to refill?

In the end; this last point is the one that is the ultimate determining factor. If you want to refill less frequently; simply go up in size. If you do not mind refilling more often; then you can get by with a smaller size than what would be recommended. The following table identifies a typical landscape configuration and sizes that can be served with each EZ-FLO main line model along with other sizing information.

Please note that coverage levels assume a 4-6 week desired refill cycle for EZ001CX to EZ010-FX models. High capacity models (designated as HC) are designed for commercial landscapes serviced by professional maintenance companies. Property sizing for those units is based on a 2-3 week refill schedule. Growers and nurseries use other sizing metrics (pounds per square foot and PPM) which can be found in their related web pages.

Fertilizer Distribution Rates

EZ-FLO's patented flow technologies ensure that the proportion of fertilizer to water remains constant from the beginning of the cycle until the tank is depleted of fertilizer.For a detailed look at how EZ-FLO's technology works see our Technical Specifications.

All EZ-FLO fertigation units have an adjustable cap with four reference settings corresponding to the amount of fertilizer mixed with the water: The cap can also be set at points between these four reference settings for unlimited adjustment flexibility within the maximum and minimum proportioning rates for the cap.

The following table shows actual fertilizer proportioning rates converted to ounces; teaspoons and milliliters at the various cap reference settings along with the approximate gallons of water through the irrigation system that will empty a given size tank:

Technical Information

EZ-FLO Fertigation technology has been in development over the last ten years. As of 2007, EZ-FLO has received 9 issued US Patents and 2 International Patents covering its unique fluid flow technologies and has tens of thousands of units operating in actual field use. Our patents cover the connection couplings as well as the flow process whereby fertilizer is accurately proportioned in the tank cap for release to the irrigation water stream. One of the unique attributes of an EZ-FLO system is its ability to precisely proportion fertilizer concentrate into a water stream in an extremely accurate manner. We call this "Micro-Dosing". Not only is the amount of fertilizer concentrate proportioned accurately but the individual fertilizer elements of N-P-K are also in consistent ratios when exiting the irrigation system from the beginning of the filling cycle to the end of the cycle. Below are actual photographs of a clear tank going through a complete "full to empty" cycle.

Many people erroneously assume that fertilizer in the EZ-FLO tank is simply diluted as it goes through an entire cycle. However as can be seen above, dilution does not really occur in the way most people think. Almost all of the dilution occurs in the tank cap where we can control it and in the irrigation line where the nutrified water rejoins the rest of the clear water.EZ-FLO�s patented flow technologies effectively create an �invisible bladder� that separates the clear water entering the tank from the fertilizer concentrate at the bottom of the tank. As clear water is introduced into the tank, it arrives in a number of areas. Port water inlets at the top of the tank create a clear layer of water that separates it from the fertilizer concentrate. Additionally a micro-jet agitation nozzle at the bottom of the tank "gently" agitates the heavier fertilizer concentrate, keeping the resulting semi-dissolved solution at even chemical concentration levels leaving the tank. Because of this 'invisible bladder effect" there is no real dilution of the suspended N-P-K in the tank throughout most of the tank cycle. Only when you get to the end of the tank contents do the NPK percentages fall off. As shown in the graph under the table, EZ-FLO technology results in a level application rate and there is no concentration/dilution "spike" as occurs in other proportioning systems that have direct mixing of fertilizers with water. You can prove it yourself with an electrical conductivity meter (EC) if you want to, but we hope you'll just take our word (and the good folks at the independent Peters Laboratories where this test was conducted) for our claim.
