EZ-Flo CBVT Threaded Ball Valve 1 in. | CBVT-100

SKU
CBVT-100
Free Shipping on Orders over $149
Sales Price $32.52 Our Price $50.95 You save 36%

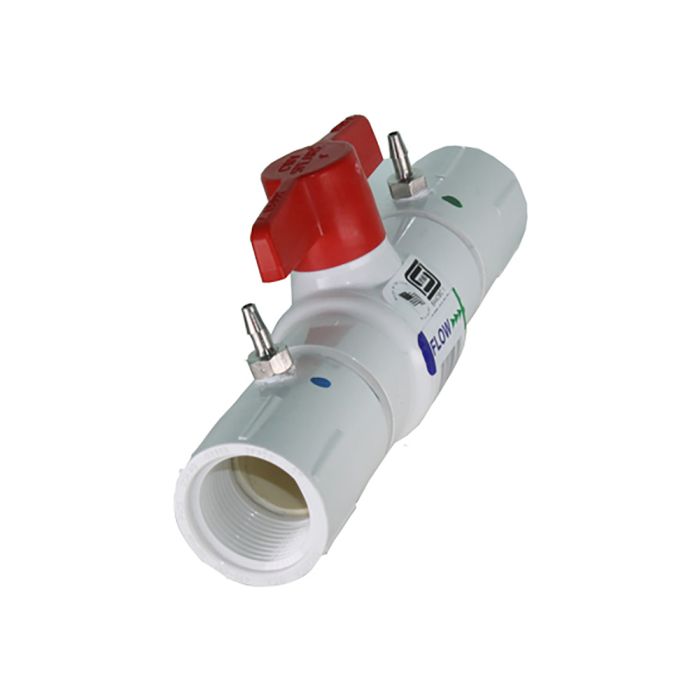

EZ-FLO CBVT-100 1 in. Threaded Coupling Connection w/ Ball Valve

Ball Valve Coupling Connectors are available in sizes ranging from 3/4 to 4 in. with socket x socket connections for gluing into PVC pipe. They are manufactured from Schedule 40 PVC with 1/4 in. metal barbed tubing connections. They are used to connect the EZ-FLO system to the irrigation flow line before or after the valve with the 1/4 in. flexible tubing provided with every EZ-FLO system. They are required for complex system designs or when the elevation of zone valves downstream from the EZ-FLO installation point are at an elevation of 10 feet (3 meters) or more above the installation point or where the user needs more control over the operation of the fertigation unit. Ball Valve Connectors provide the ability to adjust the differential pressure between the inlet and outlet connections to the irrigation flow line and can ensure that even the heaviest organic fertilizers and supplements can be pulled from the tank.

Ball Valve Coupling connectors are highly recommended for use with EZ005-FX and EZ010-FX models and REQUIRED FOR all High Capacity (HC) main line units.

Ball Valve Connectors provide the ability to adjust the differential pressure between the inlet and outlet connection to the irrigation flow line. They are also recommended for any application where higher feed rates are desired or heavier fertilizer/supplement products are used. This is especially important to nurseries and growers where higher proportioning rates are needed.

Features & Benefits

  • CBVT-100 ? 1 in. Threaded Coupling Connection with Ball Valve

Specifications

  • Case quantity: 1
  • Case weight lbs: .25

Manuals and Literature

Instructions
More Information
Brand EZ-Flo
Max PSI 100
Size 1 in.
Warranty 5 Years
Coupling Size 1 in.
Guide (603.49 kB)
