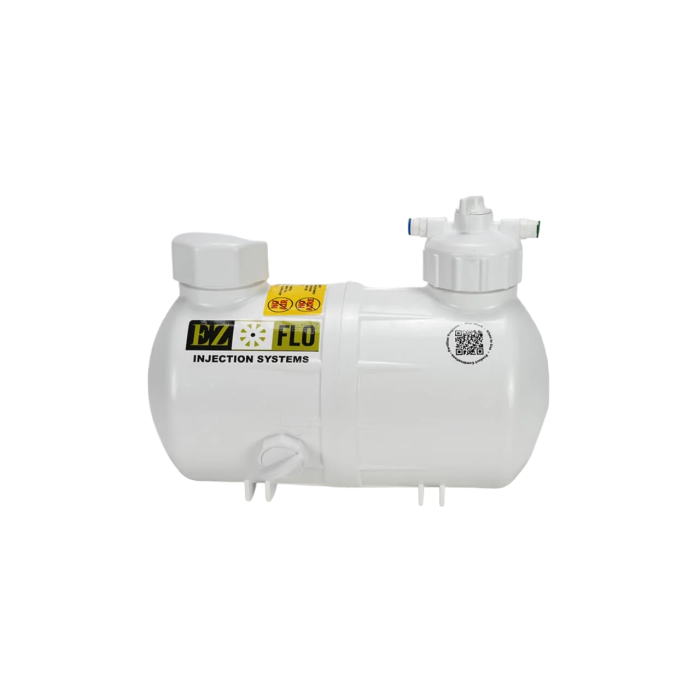

1.75 Gallon Main-line Dispensing System (6.6liters)
CBV-100 Included (3/4 in. & 1 in. main lines)
Up to 17,000 sqft
The EZKIT systems are the next generation of quality injection products from EZ-FLO. Providing added capacity and convenience in a smaller footprint. The proprietary fill system mimics our high capacity design previously only available on our 10 gallons and larger models. The drain valve and fill port provide access for refilling the system without the need to move the tank or disconnect any hoses.
Comes complete with tubing and CBV-100 mainline connection for installation into 3/4″ and 1″ piping.
Capacity
The new EZKIT systems are the next generation of quality injection products offered by EZ-FLO. The EZKIT-1 is nearly identical in construction to the time-tested CX versions. However, the KITS now offer upgraded features previously only available in high-capacity models.
The proprietary fill system nearly doubles the water-soluble powder capacity of a CX model, extending the refill duration or coverage area of a tank.
Convenience
Each model incorporates a separate fill port and drain valve allowing for the system to be refilled with the product and never leave the valve box. No tubing to disconnect or heavy tank to lift out providing for a faster, simpler refill. The CBV connection for 3/4”- 1” and Tubing Kit come standard in the box.
Cost
With added duration between refills, fewer site visits are required to service a typical property or you can lower your equipment install cost. A smaller system, smaller valve box, smaller hole, all make adding EZ-FLO a budget friendly option for more clients.
To keep the process simple, we follow a straightforward sizing method that focuses on the irrigated area/root zone only for a 4 to 8 week refill period. This ensures you will have ample capacity for a wide range of products.
Quick Sizing Reference Chart:
Model | Capacity | Capacity | Unit Size | Valve Box Size | |
Gallons | Pounds | Square Feet | L x W x H | L x W x H | |
EZ001 | 1.50 | 10 | 10,000 | 13" x 8" x 11" | 19" x 14" 12" |
EZ003-CX | 2.50 | 15 | 15,000 | 21" x 8" x 11" | 24" x 13" x 12" |
EZ005-FX | 5.00 | 30 | 30,000 | 28" x 10" x 13" | 30" x 18" x 17" |
EZ010-FX | 9.40 | 50 | 50,000 | 27" x 12" x 14" | 30" x 18" x 17" |
EZKIT-1 | 1.75 | 17.5 | 17,500 | 14" x 10" x 11" | 20" x 16" x 12" |
EZKIT-3 | 2.50 | 25 | 25,000 | 22" x 10" x 11" | 30" x 18" 17" |
EZKIT-5 | 5.00 | 50 | 50,000 | 27" x 12" x 14" | 30" x 18" x 17" |
EZ010-HC | 10.00 | 75 | 75,000 | 32" x 12" x 18" | 36" x 24" x 24" |
EZ017-HC | 17.50 | 150 | 150,000 | 36" x 15" x 20" | 36" x 24" x 24" |
EZ025-HC | 25.00 | 225 | 225,000 | 36" X 19" X 23" | 36" x 24" x 24" |
HF-045 | 45.00 | 400 | 400,000 | 25" X 25" X 67" | Above Grade |
HF-086 | 86.00 | 800 | 800,000 | 28" X 28" X 72" | Above Grade |
Brand | EZ-Flo |
---|---|
Product Type | EZ Flo Fertilizer System |
Warranty | 5 Years |
