Febco PVB Bonnet Kit 1-1/2 in. - 2 in. | FE901-857

In stock
SKU
FE901-857
Free Shipping on Orders over $149
Sales Price $115.95 Our Price $148.42 You save 22%

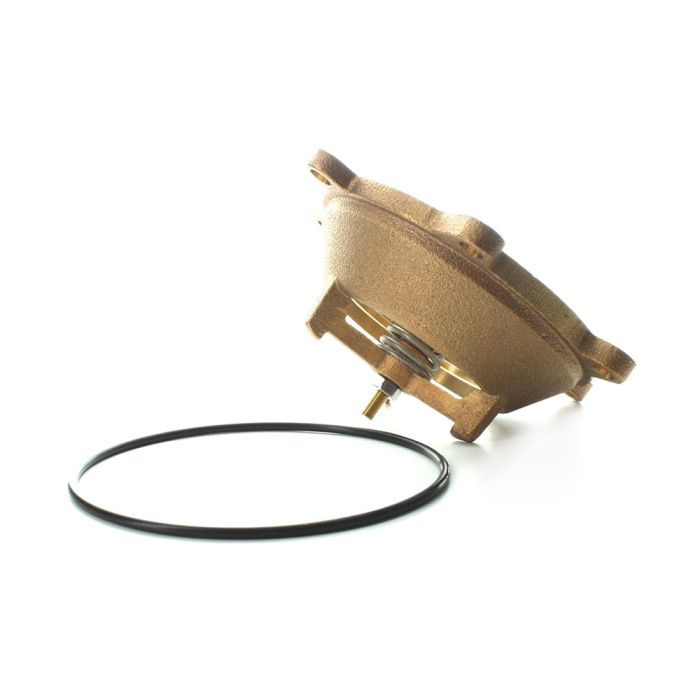

Febco PVB Bonnet Kit 1-1/2 in. - 2 in.

Overview

  • Febco
  • Size: 1 1/2 in. - 2 in.
  • Only Bonnet and O Ring

Features & Benefits

Here are Two Ways to Determine the Size Kit You Need:

  1. Measure across the bottom of the Poppet (item 12 in the picture above); the distance across the bottom of the Poppet will determine which size kit you need: 1/2" & 3/4" Kits: Poppet measures 1- 1/8" to 1- 3/16" across the bottom (diameter). 1" & 1-1/4" Kits: Poppet measures 1- 7/8" across the bottom (diameter). 1-1/2" & 2" Kits: Poppet measures 3- 7/16" across the bottom (diameter).
  2. Measure across the bottom of the Bonnet Assembly; the distance across the bottom of the Bonnet Assembly (threaded part) will determine which size kit you need: 1/2" & 3/4" Kits: Bonnet Assembly measures 1- 5/16" across the bottom (diameter). 1" & 1-1/4" Kits: Bonnet Assembly measures 2- 3/16" across the bottom (diameter). 1-1/2" & 2" Kits: Bonnet Assembly is made of brass and measures 5- 1/8" across the bottom (diameter). 90% of the

Pressure Vacuum Breakers (PVB) installed for a typical residential home are 1" PVB's

Product Details

How to Replace the Bonnet and Poppet (you should always change both):

  • Turn off the water supply (Warning: Failure to Assure the Water Pressure is Relieved can cause Harm!)
  • Close water supply side ball valve first
  • Go to the sprinkler controller and manually start each zone or section valve by manually starting the sprinkler system. This will relieve the water pressure in the PVB. Then turn off the manual operation of the sprinkler system.
  • Close second ball valve (on the outlet side of PVB)
  • Make sure that you have relieved water pressure by opening test cocks on side of the PVB
  • Place large O-Ring (included in the kit) around Bonnet
  • Apply lubricant (included in the kit) to the gasket
  • Fit (slide it onto) Poppet on brass guide stem of Bonnet
  • Thread Bonnet into PVB unit (hand tight only) Replace Canopy and tighten the nut on top of the canopy using a wrench
  • Turn on the water supply
  • Open water supply side ball valve first and rapidly
  • Open second ball valve
More Information
Brand Febco
Series Febco PVB Bonnet Kit
Backflow Compatability Febco PVB Repair
Warranty 1 Year
Size 1-1/2 in. - 2 in.
Guide (253.07 kB)
