Here are Two Ways to Determine the Size Kit You Need:
Measure across the bottom of the Poppet (item 12 in picture above); the distance across the bottom of the Poppet will determine which size kit you need: 1/2" & 3/4" Kits: Poppet measures 1- 1/8" to 1- 3/16" across the bottom (diameter). 1" & 1-1/4" Kits: Poppet measures 1- 7/8" across the bottom (diameter). 1-1/2" & 2" Kits: Poppet measures 3- 7/16" across the bottom (diameter).
Measure across the bottom of the Bonnet Assembly; the distance across the bottom of the Bonnet Assembly (threaded part) will determine which size kit you need: 1/2" & 3/4" Kits: Bonnet Assembly measures 1- 5/16" across the bottom (diameter). 1" & 1-1/4" Kits: Bonnet Assembly measures 2- 3/16" across the bottom (diameter). 1-1/2" & 2" Kits: Bonnet Assembly is made of brass and measures 5- 1/8" across the bottom (diameter).
90% of the Pressure Vacuum Breakers (PVB) installed for a typical residential home are 1" PVB's
How to Replace the Bonnet and Poppet (you should always change both):
Turn off the water supply (Warning: Failure to Assure the Water Pressure is Relieved can cause Harm!)
Close water supply side ball valve first
Go to the sprinkler controller and manually start each zone or section valve by manually starting the sprinkler system. This will relieve the water pressure in the PVB. Then turn off the manual operation of the sprinkler system.
Close second ball valve (on outlet side of PVB)
Make sure that you have relieved water pressure by opening test cocks on side of PVB
Place large O-Ring (included in kit) around Bonnet
Apply lubricant (included in kit) to gasket
Fit (slide it onto) Poppet on brass guide stem of Bonnet
Thread Bonnet into PVB unit (hand tight only)
Replace Canopy and tighten nut on top of canopy using a wrench
Turn on the water supply
Open water supply side ball valve first and rapidly
Open second ball valve

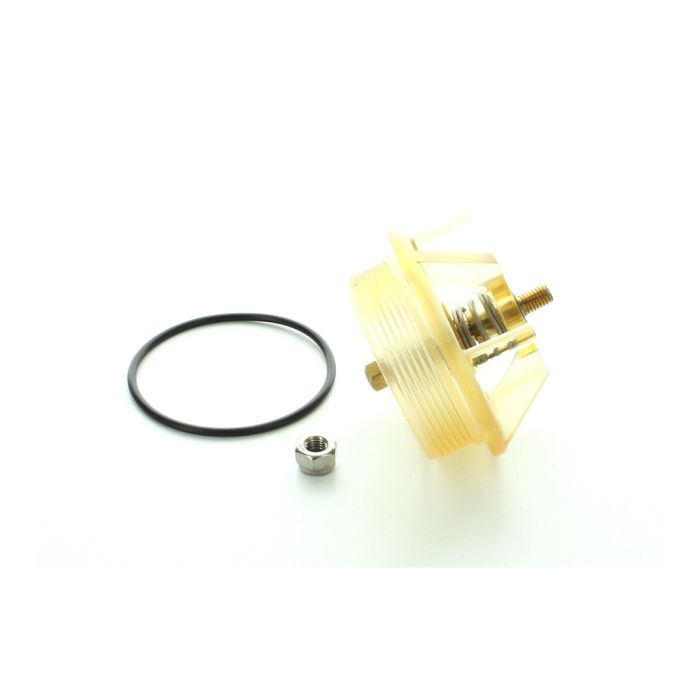

Kit # 905-211 includes the Bonnet and Poppet Assemblies for both 1/2" and 3/4" Pressure Vacuum Breakers
Kit # 905-212 includes the Bonnet and Poppet Assemblies for both 1" and 1 1/4" Pressure Vacuum Breakers
*Red indicates repair parts sold at the Sprinkler Warehouse
