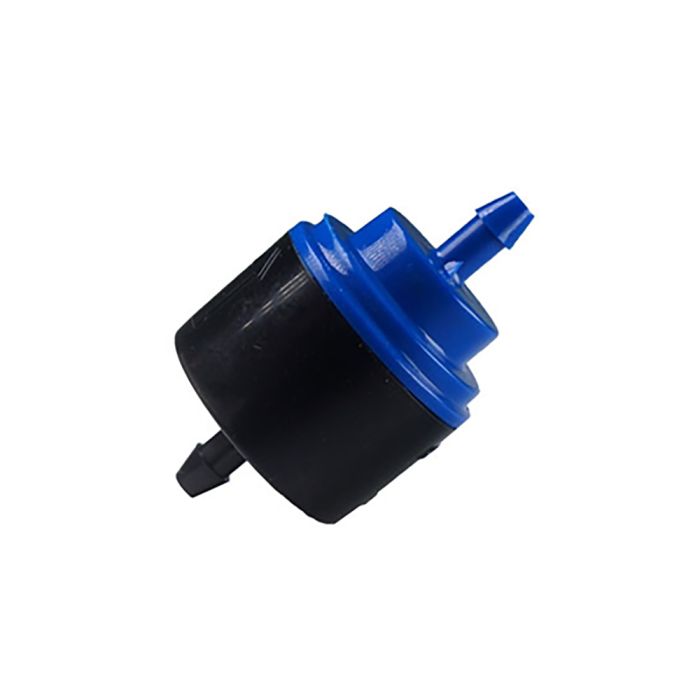

Hendrickson 11 GPH Coupling 1/4 in. Barb | FCC80-1-11

Features & Benefits

• Constant flow rate compensates for terrain elevation changes or mainline friction loss.
• Provides consistent micro sprayer spray pattern regardless of pressure changes.
• Ideal for fertigation as mainline is always primed.
• Reduces runoff, erosion, and waste.
• Saves on pump horsepower and pipe sizing.

Applications

• Agriculture
• Orchards
• Greenhouses
• Nurseries
• Landscaping

Specifications

• Starts water flow at 25 psi and stops at 6 - 8 psi.
• Pressure compensation from 25 -Ú 70 psi.
• Comes in four colored flows (6, 11, 17, and 24 GPH) or custom flows.
• Flow control is made of flexible polyvinyl chloride.
• Overall length 1.68, Diameter 1.5
• Comes in 1/4 barb or 10/32 threaded options.
• Can be installed on the mainline hose, the riser, or underneath the sprinkler.
• Housing is made of high-strength black ABS plastic for chemical and impact resistance
