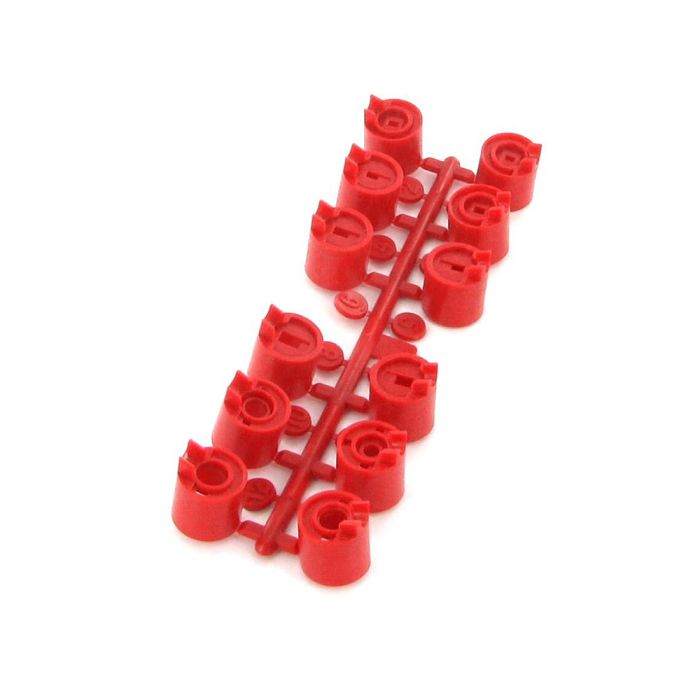

The Hunter PGP Irrigation and Sprinkler Rotor Nozzle offers even water distribution from nozzles that have been engineered with precision. Superior lawn coverage at both the closein and mid-range areas as well as a superb visual appearance. Hunter PGP Rotor Nozzles remain the leader in the lawn and landscaping industry.
| NOZZLE | PRESSURE PSI | RADIUS FT. | FLOW GPM | PRECIP IN/H | PRECIP IN/H |
|---|---|---|---|---|---|
| 1 | |||||
| 30 | 28' | 0.5 | 0.12 | 0.14 | |
| 40 | 29' | 0.6 | 0.14 | 0.16 | |
| 50 | 29' | 0.7 | 0.16 | 0.19 | |
| 60 | 30' | 0.8 | 0.17 | 0.20 | |
| 2 | |||||
| 30 | 29' | 0.7 | 0.16 | 0.19 | |
| 40 | 30' | 0.8 | 0.17 | 0.20 | |
| 50 | 30' | 0.9 | 0.19 | 0.22 | |
| 60 | 31' | 1.0 | 0.20 | 0.23 | |
| 3 | |||||
| 30 | 30' | 0.9 | 0.19 | 0.22 | |
| 40 | 31' | 1.0 | 0.20 | 0.23 | |
| 50 | 31' | 1.2 | 0.24 | 0.28 | |
| 60 | 32' | 1.3 | 0.24 | 0.28 | |
| 4 | |||||
| 30 | 32' | 1.2 | 0.23 | 0.26 | |
| 40 | 33' | 1.4 | 0.25 | 0.29 | |
| 50 | 34' | 1.6 | 0.27 | 0.31 | |
| 60 | 34' | 1.8 | 0.30 | 0.35 | |
| 5 | |||||
| 30 | 34' | 1.6 | 0.27 | 0.31 | |
| 40 | 36' | 1.8 | 0.27 | 0.31 | |
| 50 | 38' | 2.0 | 0.27 | 0.31 | |
| 60 | 38' | 2.2 | 0.29 | 0.34 | |
| 6 | |||||
| 30 | 34' | 2.0 | 0.33 | 0.38 | |
| 40 | 36' | 2.4 | 0.36 | 0.41 | |
| 50 | 38' | 2.7 | 0.36 | 0.42 | |
| 60 | 38' | 2.9 | 0.39 | 0.45 | |
| 7 | |||||
| 30 | 34' | 2.6 | 0.43 | 0.50 | |
| 40 | 38' | 3.0 | 0.40 | 0.46 | |
| 50 | 40' | 3.4 | 0.41 | 0.47 | |
| 60 | 40' | 3.7 | 0.45 | 0.51 | |
| 8 | |||||
| 30 | 37' | 3.2 | 0.45 | 0.52 | |
| 40 | 39' | 3.7 | 0.47 | 0.54 | |
| 50 | 41' | 3.9 | 0.45 | 0.52 | |
| 60 | 42' | 4.6 | 0.50 | 0.58 | |
| 9 | |||||
| 30 | 38' | 3.6 | 0.48 | 0.55 | |
| 40 | 41' | 4.3 | 0.49 | 0.57 | |
| 50 | 44' | 5.2 | 0.52 | 0.60 | |
| 60 | 45' | 5.5 | 0.52 | 0.60 | |
| 10 | |||||
| 30 | 44' | 6.0 | 0.60 | 0.69 | |
| 40 | 46' | 6.8 | 0.62 | 0.71 | |
| 50 | 47' | 7.6 | 0.66 | 0.76 | |
| 60 | 49' | 8.2 | 0.66 | 0.76 | |
| 11 | |||||
| 30 | 46' | 8.0 | 0.73 | 0.84 | |
| 40 | 48' | 8.9 | 0.74 | 0.86 | |
| 50 | 50' | 9.8 | 0.75 | 0.87 | |
| 60 | 51' | 10.5 | 0.78 | 0.90 | |
| 12 | |||||
| 30 | 46' | 10.5 | 0.96 | 1.10 | |
| 40 | 48' | 11.9 | 0.99 | 1.15 | |
| 50 | 50' | 12.7 | 0.98 | 1.13 | |
| 60 | 52' | 14.1 | 1.00 | 1.16 | |
| Note: All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2. | |||||
| Brand | Hunter |
|---|---|
| Product Type | Rotor Replacement Nozzles |
| Compatability | PGP |
| Set | 12 |
| Max PSI | 100 PSI |
| Operating PSI | 20 - 100 PSI |
| Warranty | 2 Years |
| Color | Red |
