Hunter 17 mm Brown Drip Line (12 in. Emitter Spacing) (1 GPH) (250 ft.) | HDL-09-12-250CV

In stock
Free Shipping on Orders over $149
Sales Price $78.95 Our Price $98.99 You save 20%

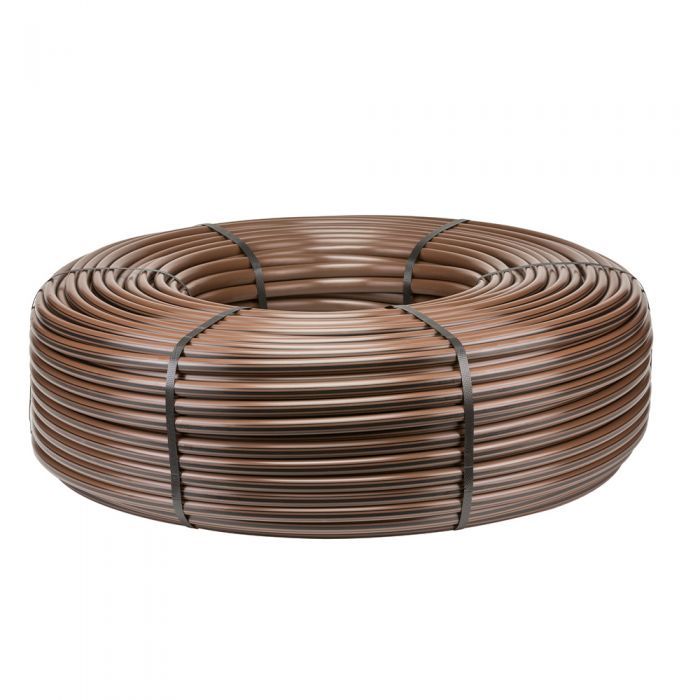

Hunter 17 mm Brown Drip Line

  • Emitter Spacing: 12 in.
  • Flow Rate: 0.9 GPH
  • Length: 250 ft
  • Surface or Subsurface Irrigation: Gardens, Turf, Tree Rings, Green Walls, Irregular Spaces

Features & Benefits

Hunter Dripline (HDL) is a high-efficiency, ultra-durable upgrade to PLD that is available in three pressure-compensating varieties to accommodate a range of drip system needs. Choose HDL-PC for standard installations, HDL-CV for sloping or subsurface applications that require a check valve, and HDL-R when using reclaimed water.

Install HDL at grade or subsurface to effectively and precisely irrigate shrubs, gardens, turf, perennials, and trees. Kink- and UV-resistant HDL features a large internal diameter that allows fittings to be installed more easily, and provides the capacity for longer maximum runs. Highly consistent pressure-compensating emitters come with a built-in filter inlet port as well as wide labyrinth pathways to prevent clogging.

Color-coded striping allows users to quickly identify the flow in the field, saving time during maintenance. Tan, gray, and black colors indicate flow rates of 0.4, 0.6, and 0.9 GPH, respectively. Purple indicates non-potable applications. The dripline can be easily unraveled from the inside of the coil since it is stretch-wrapped, keeping the coil intact.

In addition, the eco-friendly HDL is made with approximately 80% pre-consumer reprocessed resins, offering a high level of sustainability without sacrificing quality.

  • Pressure-compensating emitters
  • Color-coded stripes to identify flow
  • Flow rates of 0.4, 0.6, 0.9 GPH
  • Emitter spacing at 12", 18", and 24"
  • Tubing diameter: 0.660" (OD) x .560" (ID)
  • Wall thickness 0.05"
  • Strong UV resistance
  • Stretch-wrapped 250' coil make handling easy and efficient

Product Details

  • Pressure-compensating, non-draining emitters
  • Operating pressure range: 15 to 60 PSI
  • Minimum filtration: 120 mesh; 125 microns
  • Full-sized emitter outlet pool and raised wall inhibit debris and roots from entering the emitter
  • Multiple inlet filters in the emitter and a wide turbulent labyrinth provide superior grit tolerance
  • Slow-draining check valve (CV) emitters prevent low-point pooling and boost system efficiency
  • Copper will not leach into soil
  • Copper oxide in the emitter provides root intrusion resistance
  • Anti-siphon feature prevents debris from entering emitter at system shutdown
TAN = 0.4 GPH (1.5 I/hr) GRAY = 0.6 GPH (2.1 I/hr) BLACK = 0.9 GPH (3.4 I/hr)
More Information
Brand Hunter
Inner Diameter .570 in.
Outer Diameter .670 in.
Type Drip Line
Purpose Or Function Dripline
Warranty 5 Years
Size 17 mm
Guide (300.54 kB)
Specifications (458.46 kB)
